07372SO - Soraa - Transfromer 12v 70w Leading Trailing 240v

Soraa Transfromer 12v 70w Leading Trailing 240v

TCVW-P-12-600-70-01-S3

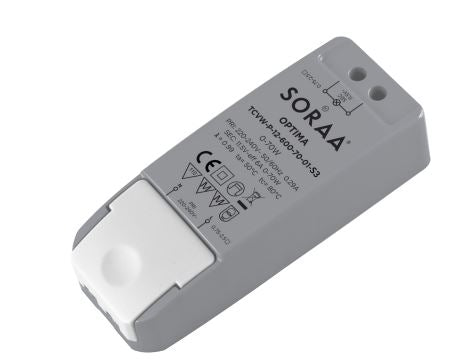

The Soraa Optima Series electronic transformer is ideal for 12V LED or halogen lamps. It's highly efficient, works with leading edge or trailing edge dimmers, is easy to install, and features open circuit, short circuit, overload, and over temperature protections and a 30,000 hour lifetime.

Construction
Thermally stable shatter proof PC plastic casing.
Primary Terminal 2-pole, Screw 5.2mm
Secondary Terminal 2-pole, Screw 3.2mm

Compliance
Safety EN 61347-2-1
RFI EN 55015
Harmonics EN61000-3-2
Immunity EN 61547

Electrical: Input
Rated Input Voltage 220-240VAC
Input Current (Full Load) 0.29A
Input Frequency 50/60Hz
Max Input Power 71W
Power Factor ≥ 0.99
THD (Full Load) ≤ 10%
Efficiency (Full Load) ≥ 93%
Input Capacitance 100nF

Electrical: Output
Output Voltage 11.2V ±5%
Output Current 6.0A
Output Power (Full Load) 67.2W
Operating Frequency 32-38KHz

Ambient
Storage Temperature- ts -20 to +70°C
Operating Temperature- ta -20 to +50°C
Case Temperature @ tc +80°C

Protection
No Load, Overload, Auto-Recovery if Short Circuit, Fault is Removed

Over temperature
Withstand Voltage 3.75KVAC, leakage < 5.0mA, 60S

Lifetime & Warranty
Average service life: 30,000 hours.
Three year warranty.
