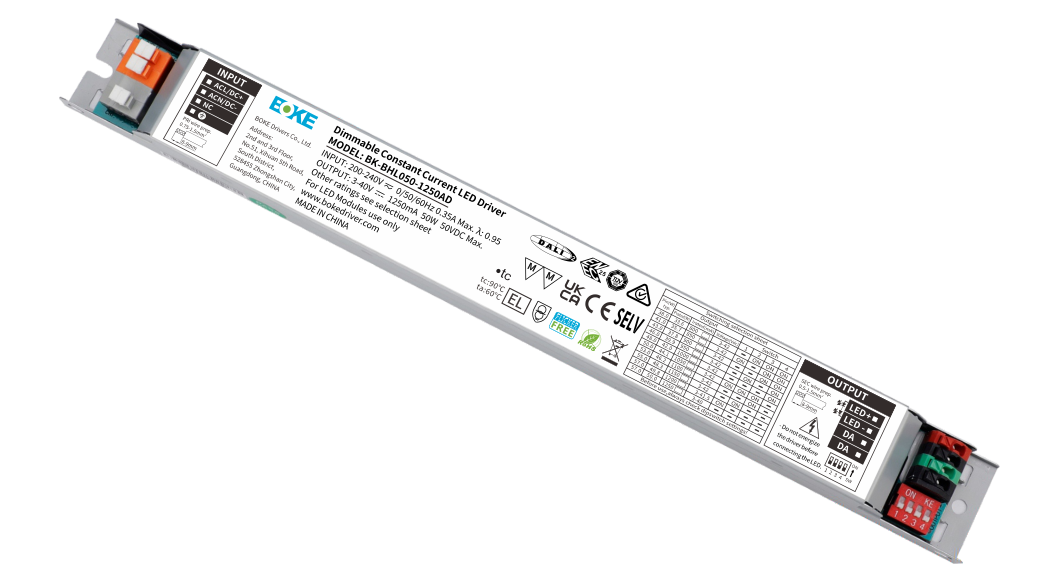

BHL series
CC Linear dimmable driver(DT6)
Features
·DALI-2/1-10V/10V PWM dimming interface
·10-level current output can be realized by DIP-switch
·Soft dimming and flicker-free at any brightness
·Using HPC patented technology at any dimming level,the brightness of the lights is the same
·Standby power input <0.5W,meets the requirements of ErP certification
·High PF,high efficiency,low THD.
·Intelligent LED hot-plug protection function
·SELV and Class I design,suitable for use inside of the light
Specifications
|
Item |
Parameter |
|
Rated input voltage |
200-240VAC/200-240VDC |
|
Limited voltage |
180-264VAC/180-264VDC |
|
Input votage shock |
380V |
|
Protection type |
Class | |
|
Output type |
SELV |
|
Output current accuracy |
1% |
|
Dimming range |
1-100% |
|
Power on time |
<0.7s |
|
Standby power |
<0.5W |
|
No load output voltage |
50VDC |
|
Surge |
L-N:2KV,L-FG/N-FG:2KV |
|
Flicker-free |
Pst LM <1,SVM <0.4 |
|
Operation temperature |
-20℃-+60℃ |
|
Protection class |
IP20 |
|
Life time |
Normal 100,000 hours |
|
Warranty |
5 years |
