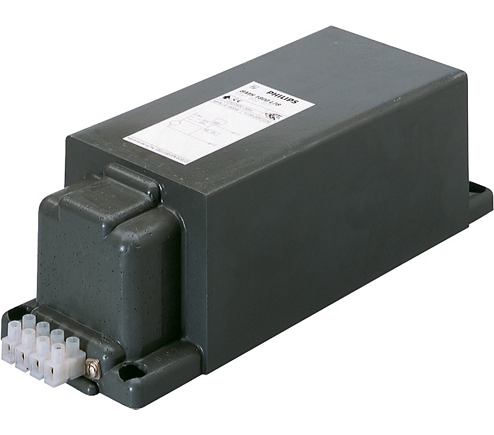

BSN 1000 L78 230/240V 50Hz

BSN 1000 L78 230/240V 50Hz

Specifications

General Information

Remarks	UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Application code	L78-A2

Design	HP-257
Lamp type	SON
Number of lamps	1 piece/unit

Operating and Electrical

Input Voltage	230 V (default) or 240 V
Input frequency	50 Hz
Input voltage (multi-tab)	230/240
Power factor 100% load (nom.)	0.87
Mains voltage performance (AC)	-8%-+6%
Mains voltage safety (AC)	-10%-+10%

Input current with PF correction	5.40 A
Input current without PF Correction	10.30 A
Power factor without PF compensation (nom.)	0.50
Power losses (nom.)	54.0 W

Wiring

Wire strip length	7.0 mm
Ballast contact wire cross section	0.70-6.00 mm²

Connector type

Screw

System characteristics

Capacitor	100µF/250V
Rated ballast-lamp power	1000 W
Recommended ignitor	Series ignitor - SN 56 (913619669966) / SN 59 (913619659966)

Temperature

T storage (max.)	80 °C
T storage (min.)	-25 °C

T-winding (max.)	130 °C
Delta-T normal conditions	70 °C

Approval and Application

Approval marks

CE marking ENEC certificate

Product Data

Full product code	871150006236900
Order product name	BSN 1000 L78-A2 230/240V 50Hz HP-257
EAN/UPC – product	8711500996640
Order code	06236900
Local order code	BSN1000L78

SAP numerator – quantity per pack	1
Numerator – packs per outer box	1
SAP material	913700217503
SAP net weight (piece)	12.700 kg
