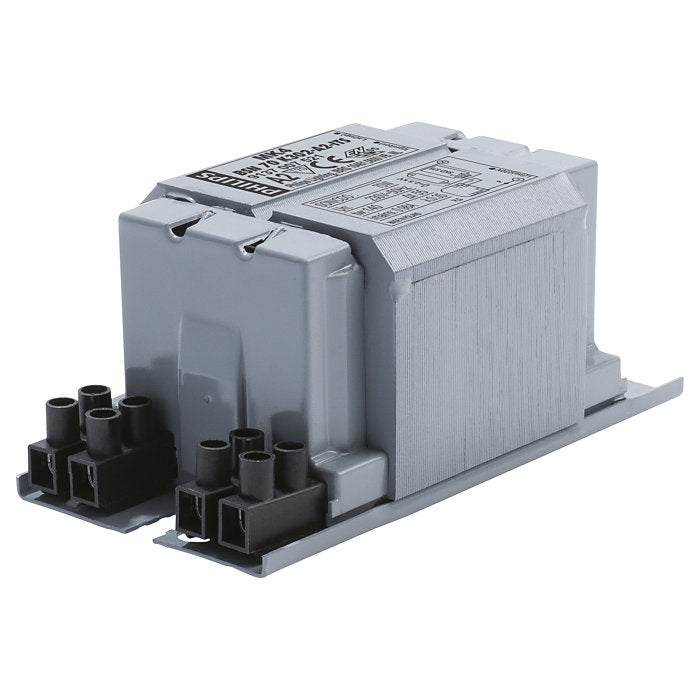

BSN 70 K302-A2-ITS 230V 50Hz

Specifications

General Information

Remarks

UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG

Application code	K302-A2-ITS
Design	BC1-118
Lamp type	SON/CDO
Number of lamps	1 piece/unit

Operating and Electrical

Input Voltage	230 V
Input frequency	50 Hz
Power factor 100% load (nom.)	0.85
Mains voltage performance (AC)	-8%-+6%
Mains voltage safety (AC)	-10%-+10%
Input current with PF correction	0.45 A

Input current without PF Correction	0.98 A
Power factor without PF compensation (nom.)	0.35
Power losses (nom.)	11.7 W

Wiring

Wire strip length	6.0 mm
Ballast contact wire cross section	2.5 mm²

Connector type

Screw

System characteristics

Capacitor	12µF/250V
Rated ballast-lamp power	70 W
Recommended ignitor	for SON/CDO/CDM lamps ignitor SKD 578 (913700655366) or series digital SUD10 (913700195891)

Temperature

T storage (max.)	130 °C
T storage (min.)	-30 °C
T-winding (max.)	140 °C

Delta-T normal conditions

55 °C

Approval and Application

Active temperature protection

Yes

Approval marks

CE marking ENEC certificate

Product Data

Full product code	871869674082800
Order product name	BSN 70 K302-A2-ITS 230V 50Hz
EAN/UPC – product	8718696740828
Order code	74082800
SAP numerator – quantity per pack	1

Numerator – packs per outer box	6
SAP material	913700752126
SAP net weight (piece)	1.260 kg
