Wattage:
Voltage:
EAN:
Manufacturer:

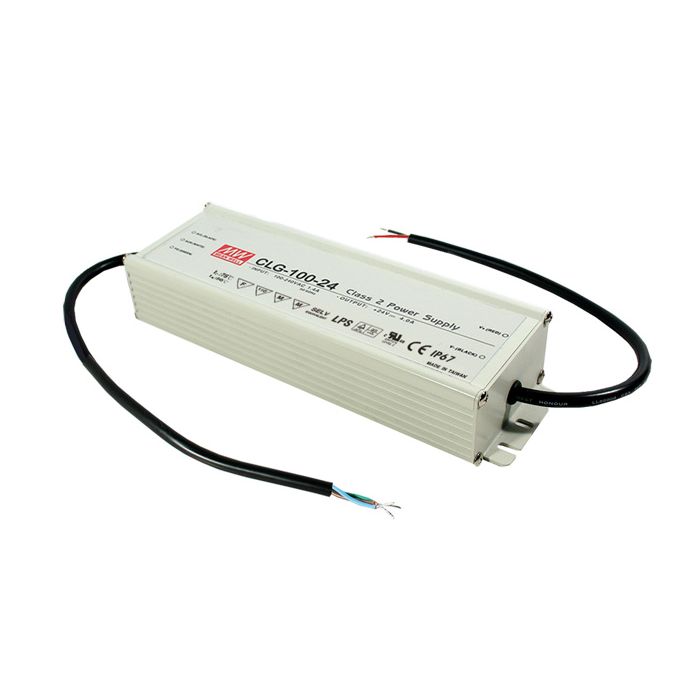

Built-in active PFC function, PF>0.9 for 75% of load or higherBuilt-in constant current limiting circuit (C.V + C.C mode)Protections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 295 VAC) / Full rangeIP67 ratedClass 2 power unit / Pass LPS Cooling by free air convectionSuitable for LED lighting, street lighting and moving sign applicationsMeet 4KV surge immunity level (IEC 61000-4-5)3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 100 Output Voltage 27V Dimmable (Type) No DC Output Adjustment Fixed . Can be modified between 85%~100% rated output voltage Dimensions 222 x 68 x 39 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL1310, UL8750, UL879, TUV EN61347-1, EN61347-2-13, PSE J61347-1, TUV EN60950-1 Output Voltage Options Single Working Temperature -30~+70°C (refer to output derating curve) PDF Datasheet CLG-100-SPEC.PDF
More Information Manufacturer Mean Well Output Wattage (W) 100 Output Voltage 27V Dimmable (Type) No DC Output Adjustment Fixed . Can be modified between 85%~100% rated output voltage Dimensions 222 x 68 x 39 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL1310, UL8750, UL879, TUV EN61347-1, EN61347-2-13, PSE J61347-1, TUV EN60950-1 Output Voltage Options Single Working Temperature -30~+70°C (refer to output derating curve) PDF Datasheet CLG-100-SPEC.PDF
