DALI Alliance DALI 1 Registered Device.

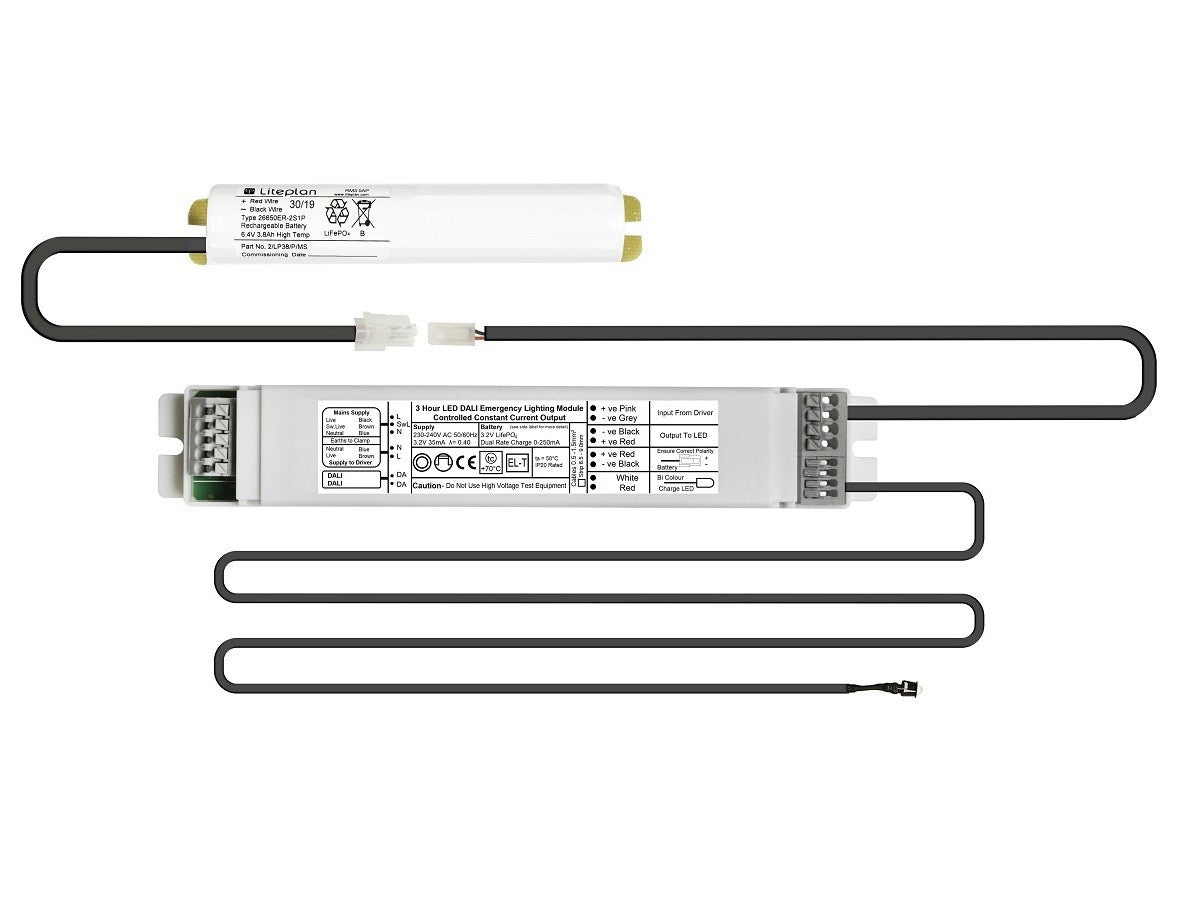

3 hour High Output DALI self-test emergency lighting conversion kit, designed to suit an extremely wide range of LED types and circuits. The DNA/2 automatically adjust the output LED current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The DNA/2 will operate LED loads between 6-55V forward and the DNA/2/80 will operate LED loads between 6 and 80V forward.
Where space inside the luminaire is limited and the 2-cell battery is too high, the DNA/2S can be supplied which has a slimmer batteries.
This product is fully DALI compliant and in keeping with the DALI Standard, if the module is commissioned without a DALI control system present, the unit will revert to standalone self-test, indicating its faults via the charge LED.
Order Codes
| Order Code | Description |
|---|---|
| DNA/2-K | Module, two cell battery and charge LED indicator for LED loads from 6-55Vf |
| DNA/2/TP40 | Above two cell kit housed in a two part enclosure for 40mm apertures |
| DNA/2/80-K | Module, two cell battery and charge LED indicator for LED loads from 6-80Vf |
| DNA/2/80/TP40 | Above two cell kit housed in a two part enclosure for 40mm apertures |
| DNA/2/IP65 | 6-55V Module and two cell battery housed in an IP rated enclosure with IP rated LED |
| DNA/2/80/IP65 | 6.80V Module and Two cell battery housed in an IP rated enclosure with IP rated LED |
| DNA/2S-K | Module, six cell battery and charge LED indicator for LED loads from 6-55Vf |
| DNA/2S/80-K |
Module, six cell battery and charge LED indicator for LED loads from 6-80Vf
|
