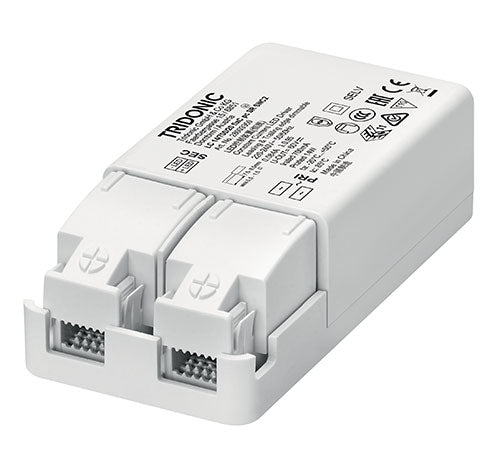

Driver LC 14W 700mA fixC pc SR SNC2

essence series

Product description

• Dimmable constant current LED driver (SELV)
• Independent driver with strain-relief housing
• Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
• Dimmable via leading edge and trailing edge phase dimmers
• Dimming range 5 to 100 % (depending on dimmer)
• For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
• Max. output power 14 W
• Output current 700 mA
• Nominal lifetime up to 50,000 h
• 5 years guarantee

Housing properties

• Casing: polycarbonate, white
• Type of protection IP20
• Push-in terminals
• 2 separate strain relief parts for input and output cables with highly robust clamps

Functions

• Overload protection
• Short-circuit protection
• No-load protection
• No output current overshoot at mains on/off
