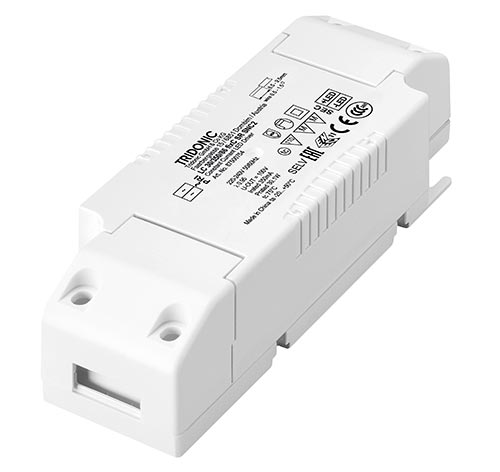

Driver LC 30W 350/500/700mA fixC SR SNC2

essence series

Product description

• Independent driver with strain-relief housing
• For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
• Temperature protection as per EN 61347-2-13 C5e
• Output current 350, 500 or 700 mA
• Max. output power 30 W
• Nominal lifetime up to 50,000 h
• 5 years guarantee

Housing properties

• Casing: polycarbonate, white
• Type of protection IP20
• Push-in terminals
• 2 separate strain relief parts for input and output cables with highly robust clamps

Functions

• Overload protection
• Short-circuit protection
• No-load protection
• No output current overshoot at mains on/off
• Burst protection voltage 1 kV
• Surge protection voltage 1 kV (L to N)
• Surge protection voltage 2 kV (L/N to earth)

Typical applications

• For spot light and downlight in retail and hospitality applications
• For panel light and area light in office and education application
