Product description

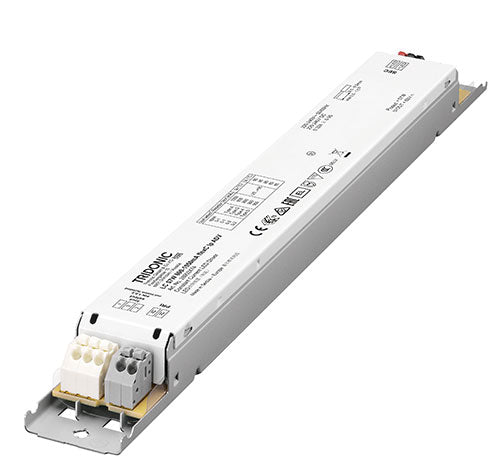

- LED Constant current LED driver for luminaire installation
- New version DC operating with EL marking
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Output current adjustable between 800 – 1,050 mA
- Max. output power 57 W
- Up to 86 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Housing properties
- Low profile metal casing with white cover
- Type of protection IP20
Interfaces
- Terminal blocks: 45° push terminals
Functions
- Overload protection
- Short-circuit protection
- No-load protection
- Overtemperature protection
- Burst protection voltage 1 kV
- Surge protection voltage 1 kV (L to N)
- Surge protection voltage 2 kV (L/N to earth)
- Suitable for emergency escape lighting systems acc. to IEC 50172
Typical applications
- For linear/area lighting in office applications
