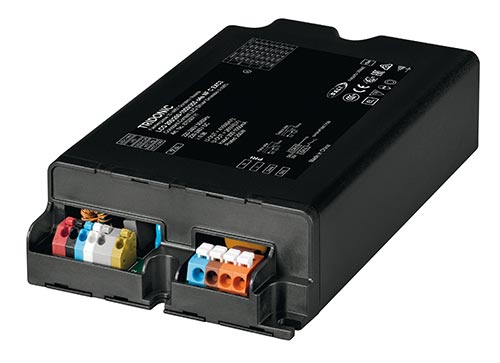

Driver LCO 200W 200–1050mA 355V o4a NFC C EXC3

excite NFC outdoor series

Product description

• Dimmable built-in constant current LED driver
• Dimming range 5 – 100 % (min. 10 mA)
• Temperature protection as per EN 61347-2-13 C5e
• Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer
• Max. output power 200 W
• Up to 94.5 % efficiency
• Lowest power input on stand-by < 0.16 W
• Nominal lifetime of 100,000 h and 8 years guarantee

Interfaces

• Near field communication (NFC)
• one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
• ready2mains (configuration via mains)
• U6Me2 (configuration of chronoSTEP 2 via mains)
• Terminal blocks: 45° / 0° push terminals

Functions

• Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains)
• Programmable chronoSTEP: times and levels (NFC, DALI, U6Me2, ready2mains)
• Dimming through mains voltage (inputDIM)
• Enhanced constant light output function (eCLO)
• Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
• Configurable external temperature management (ETM)
• Intelligent Temperature Guard (ITG)
• Intelligent Voltage Guard Plus (IVG+)
• Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

• Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 programmer
• Application-oriented operating window for maximum compatibility
• Best energy savings due to low stand-by losses and high efficiency
• In-field programming possible after installation with NFC interface and ready2mains
• High overvoltage protection: up to 10 kV asymmetric (protection class I and II)

Typical applications

• Road, street and industry

• 87500711

  LCO 200/200-1050/355 o4a NF C EXC3
