Wattage:
Voltage:
EAN:
Manufacturer:

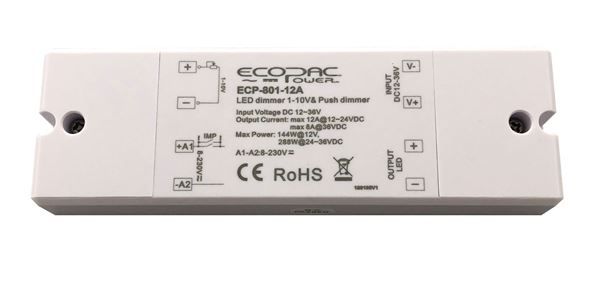

The Ecopac ECP-801-12A LED dimming inteface can be used in conjuction with non dimmable LED drivers to provide 1-10V signal dimming.
- Compact Size, High Output
- Current 1 Channel, max 12A@12~24VDC/max 8A@36VDC/CH Output
- Ultra-pro Push Dim Function
- Directly Support Both AC and DC Input Push Switches
- 1-10V Dimmer Function While Controlled by 1-10V Signal
| Output Voltage | 12 |
|---|---|
| Brand | Ecopac Power |
| Output Wattage (W) | 288 |
| Dimmable (Type) | 1-10V |
| Dimensions | 145 x 46.5 x 16 mm |
| Input Voltage | 12-36V |
| Working Temperature | -40~+85°C |
