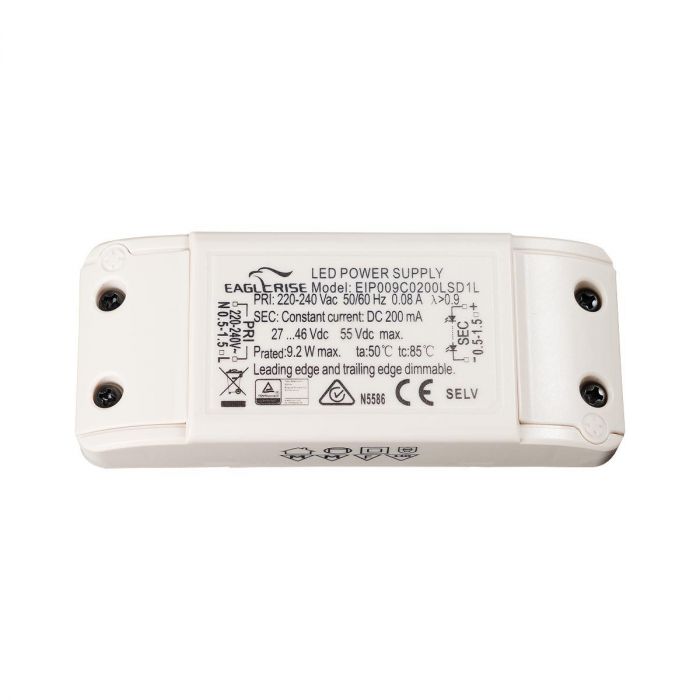

Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current range 550mA 9W
Features
Short circuit, over load, over voltage & over temperature protection
IP20 rated
Power Factor ?0.9
Efficiency ?78%
Class II, SELV
Leading edge & trailing edge dimmable
5 Year Warranty
More Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current 550mA Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf
More Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current 550mA Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf
