Wattage:
Voltage:
EAN:
Manufacturer:

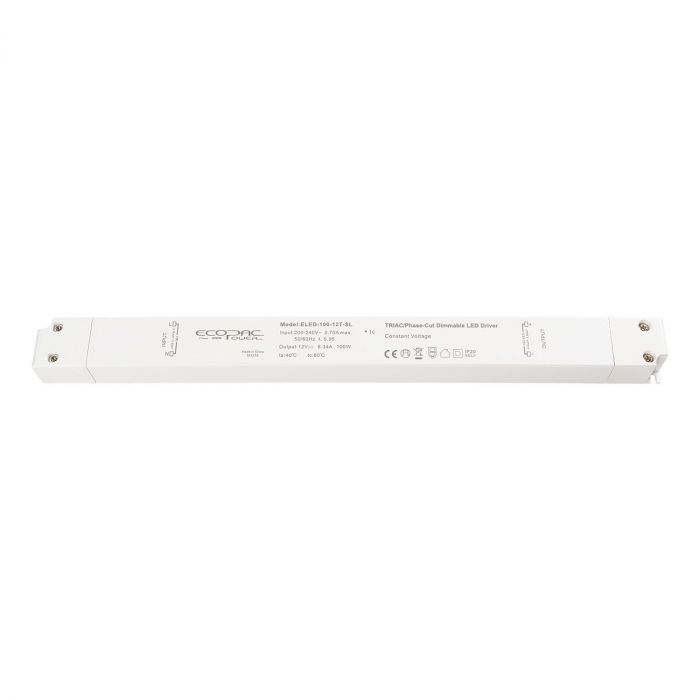

The Ecopac ELED-100P-24T-SL constant voltage slimline LED drivers are high quality, Triac dimmable. These drivers can be used with leading edge and trailing edge Triac dimmers.
Built in short circuit, overload, over current and over temperature protection together with a 3 year warranty make the ELED-100P-24T-SL highly reliable.
Constant Voltage Design 24V Output
Dimmable using leading edge & trailing edge Triac Dimmers
PWM Output
3 Years warranty
Protections: Short circuit/ Over loading/ Over current/ Over temperature
Efficiency up to 85%
Cooling by free air convection
IP20 design
Suitable for LED lighting and moving sign applications
More Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage 24V Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 330 x 30 x 22 mm EMC Standards EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,11, EN61547 Input Voltage 200-240VAC Safety Standards EN613471, EN61347-2-13, EN62493, IP20 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet ELED-100P-T-SL.pdf
More Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage 24V Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 330 x 30 x 22 mm EMC Standards EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,11, EN61547 Input Voltage 200-240VAC Safety Standards EN613471, EN61347-2-13, EN62493, IP20 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet ELED-100P-T-SL.pdf
