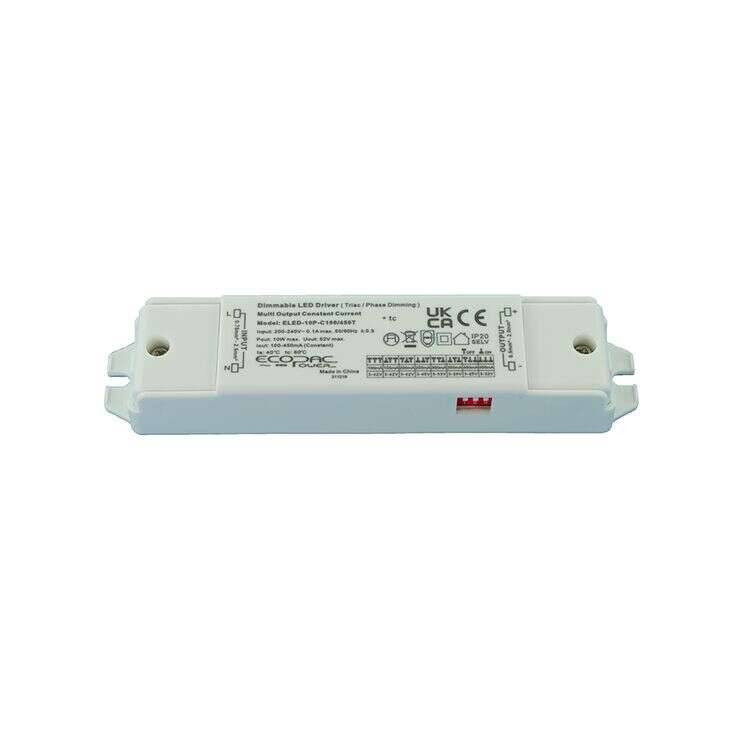

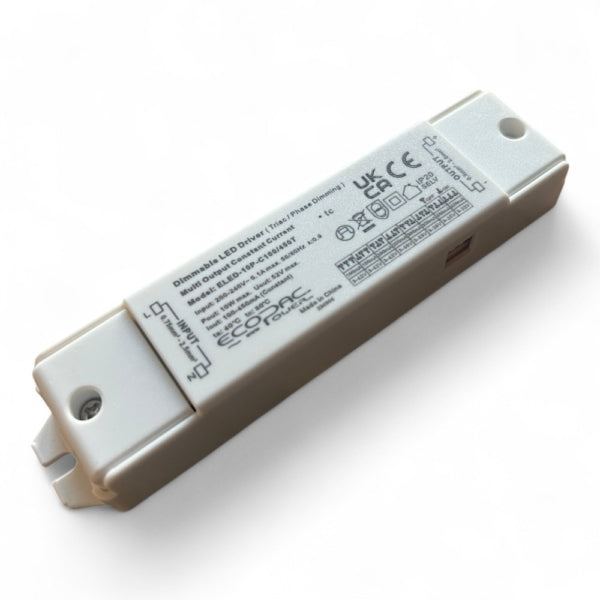

ELED-10P-C100-450T Series Features:
Features:
• Constant Current mode output with multiple levels selectable by dip switch
• Dimming function: Triac/phase cut dimming
• Work with leading or trailing edge Triac dimmer
• (ON key: leading edge; 1 key: trailing edge)
• AC input: 200-240VAC
• Built-in active PFC function
• Efficiency up to 75%
• IP20 design for indoor installation
• Full protection plastic housing easy installation
• Protections: Short circuit/ Over load
• Cooling by free air convection
• Suitable for LED lighting and moving sign applications
• Strong compatibility, flicker-free dimming
| Wattage | 10 | 10 | 10 | 10 | 10 | 8.4 | 6.3 | 4.2 |
| Input Voltage | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC |
| Output Current | 450 | 400 | 350 | 300 | 250 | 200 | 150 | 100 |
| Output Voltage | 3~22 | 3~25 | 3~28 | 3~33 | 3~40 | 3~42 | 3~42 | 3~42 |
| Dimensions | 135 x 30x 20 mm | 135 x 30x 20 mm | 135 x 30x 20 mm | 135 x 30x 20 mm | 135 x 30x 20 mm | 135 x 30x 20 mm | 135 x 30x 20 mm | 135 x 30x 20 mm |
| Working Temperature | -40~60°C | |||||||
| Safety Standards | EN61347-1, EN61347-2-13, UL8750 | |||||||
| EMC Standards | Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B | |||||||
