Wattage:
Voltage:
EAN:
Manufacturer:
Obsolete please order either of the below depending on the Ma you are using
If between 250 /700Ma
If you are using less than 250Ma

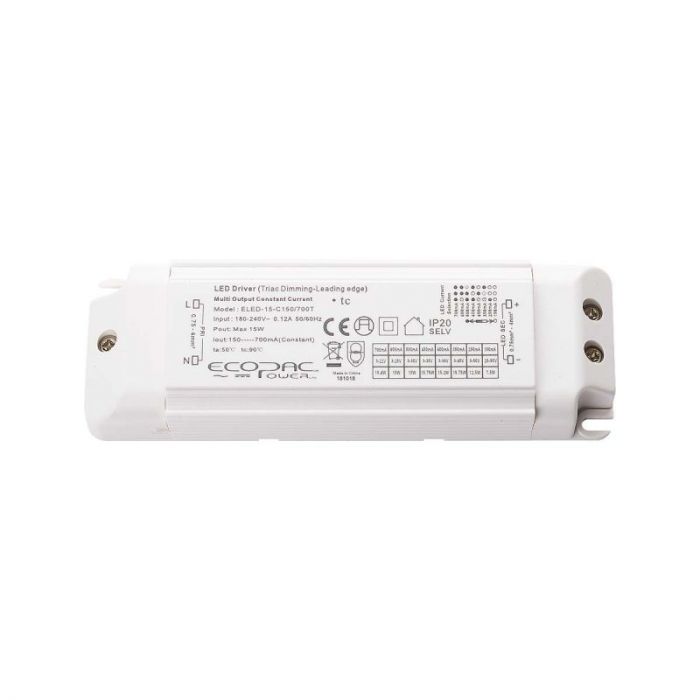

The Ecpoac Power ELED-15-C150/700T features the ability to select the output current required between 150mA and 700mA via a set of dip switches. This LED driver is also dimmable using triac dimming. Ecopac LED drivers are high quality at affordable cost and come complete with a 3 year warranty. Constant current mode output Multiple current levels selectable by dip switch Protections: Short circuit/ Over load/ Over Current Other features: Full protection housing IP20 design for indoor installation Cooling by free air convection Dimming function : Triac dimmable 3 years warranty
More Information Manufacturer Ecopac Power Output Wattage (W) 15 Output Current Selectable Dimmable (Type) Leading edge, Triac Output Voltage Range (V) 3-50V DC Output Adjustment 150-700mA Dimensions 140x 45x 28 (LxWxH) Mm EMC Standards Compliance to EN61000-4,2,3,4,5,6,11, EN61547, A light industry level ( surge 4KV ) Input Voltage 180-240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-15-CT.pdf
