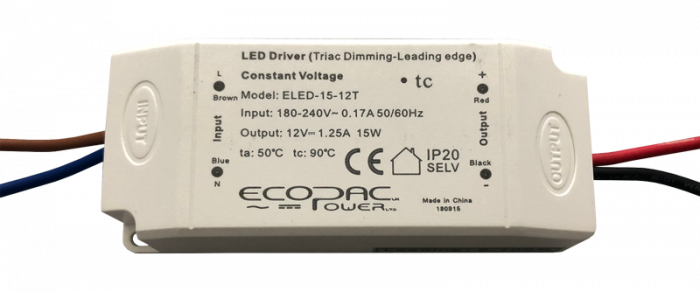

The Ecopac ELED-15-T Series is a compact, 15W triac dimmable LED driver that is available with output voltages of either 12V or 24V. The compact lightweight design make it ideally suited when space is at a premium.
Triac leading edge dimming makes for easy installation as dimming is controlled from the mains input. Works with many dimmer but is optimised to work with EcoDim triac dimming modules.
Features:
Suitable for triac leading edge dimming
Constant voltage
High efficiency up to 80%
Protections: Short circuit / Over loading / Over current
Cooling by free air convention
Lightweight plastic case
More Information Manufacturer Ecopac Power Output Wattage (W) 15 Dimmable (Type) Leading edge, Triac DC Output Adjustment No Dimensions 370 x 230 x 160 mm EMC Standards EN61000-3-2,3 (>60%loading) Input Voltage 180-240 VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40°C - +70°C PDF Datasheet ELED-15-T.PDF
More Information Manufacturer Ecopac Power Output Wattage (W) 15 Dimmable (Type) Leading edge, Triac DC Output Adjustment No Dimensions 370 x 230 x 160 mm EMC Standards EN61000-3-2,3 (>60%loading) Input Voltage 180-240 VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40°C - +70°C PDF Datasheet ELED-15-T.PDF
