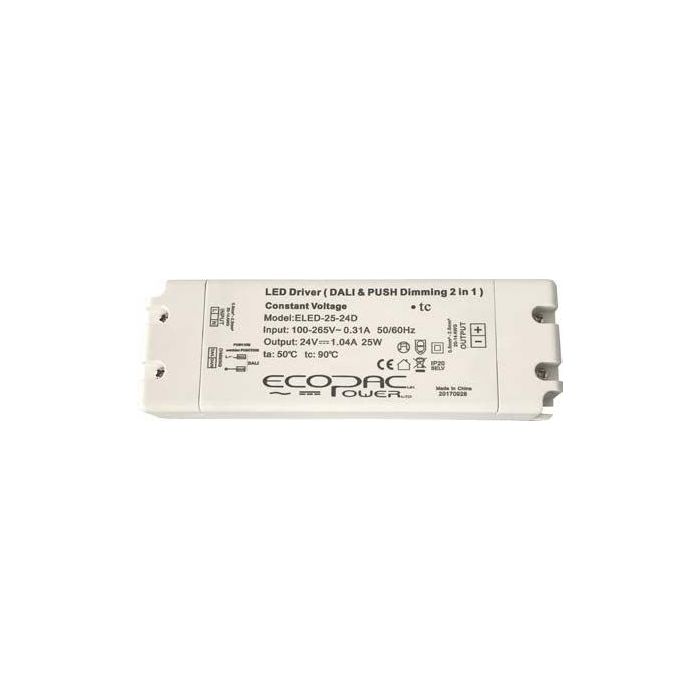

The Ecopac Power ELED-25-24D DALI Dimmable LED driver is high quality with a dimming range from 0.1% up to 100%. Short circuit and over loading protection are standard features. This model is a constant current design with a 24 volt output.
Ecopac Power LED Drivers are supplied with a 3 year warranty.
Other features:
DALI Dimmable
Dimming range: 0.1-100%
Universal AC input/ Full range 100-265VAC
Built-in active PFC function
24V Constant voltage output
IP20 Rated
3 years warranty
More Information Manufacturer Ecopac Power Output Wattage (W) 25 Output Voltage 24V Dimmable (Type) DALI DC Output Adjustment N/a EMC Standards EN55015, EN61000-3-2, EN61000-4-2,3,4,5,6,11 Input Voltage 100-265VAC Safety Standards EN61347-1,EN61347-2-13 Working Temperature -40~+60°C PDF Datasheet ELED-25-D.pdf
