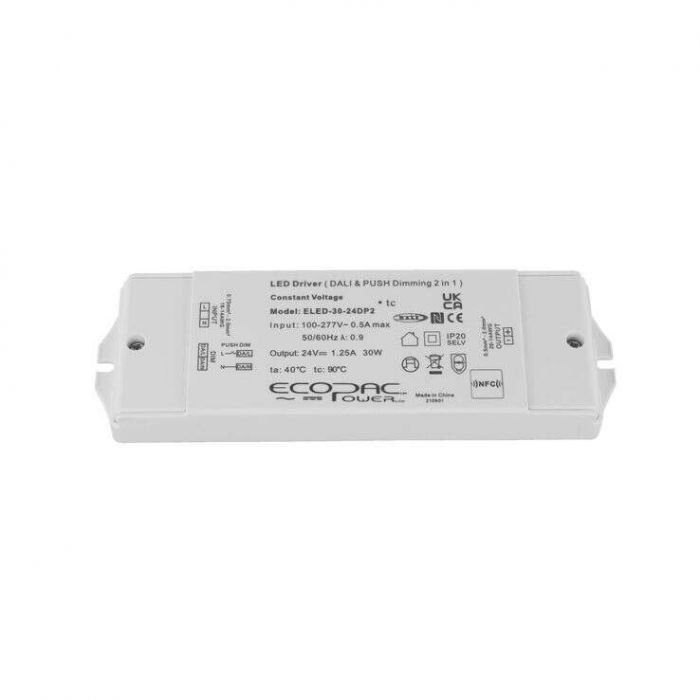

Ecopac ELED-30-24DP2 DALI Dimmable, constant voltage LED driver.
Built in short circuit, overload, over current and over temperature protection together with a 3 year warranty make the ELED-30-24DP2 highly reliable.
• Constant voltage/ PWM Output (NFC regulation)
• DALI & Push dimming function (0-100%)
• AC input: 100-277VAC
• Built-in active PFC function
• Efficiency up to 83%
• Protections: Short circuit/ Over load/Over temperature
• Cooling by free air convection
• IP20 design for indoor installation.
• Suitable for intelligent LED lighting
| Brand | Ecopac Power |
|---|---|
| Output Wattage (W) | 30 |
| Output Voltage | 24V |
| IP Rating | IP20 Non Waterproof |
| Dimmable (Type) | DALI, Push Dimming |
| Dimensions | 171.5 x 54 x 20 mm |
| EMC Standards | Compliance to EN55015, EN61000-3-2, EN61000-3-3 (≥60% load) |
| Input Voltage | 100~277VAC |
| Safety Standards | EN61347-1, EN61347-2-13, EN62493, IP20 , UL8750 (US) |
| Output Voltage Options | Single |
| Working Temperature | -40~+60°C |
| PDF Datasheet | ELED-30-DP2_2022-04-14-094641.pdf |
