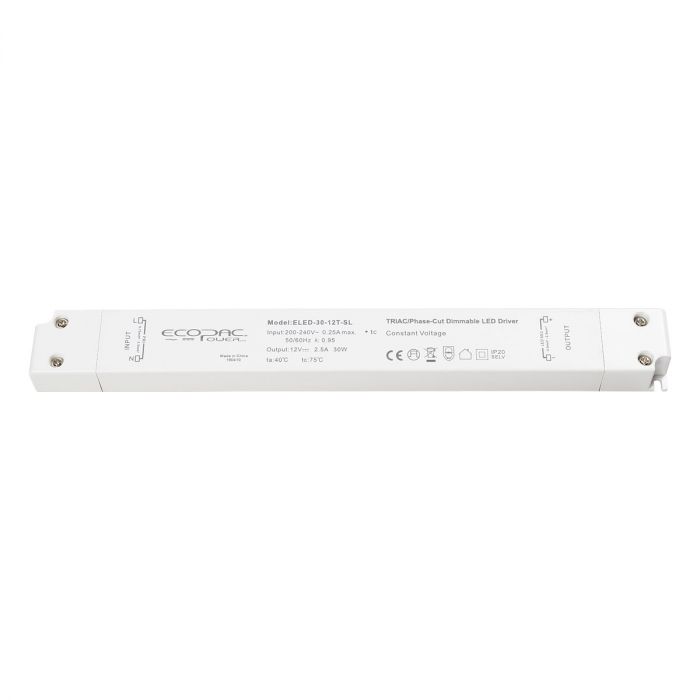

The Ecopac ELED-30P-T-SLS Series slimline triac dimmable LED driver is ideal where space is at a premium. These high quality drivers are flicker free and have an a built in active PFC function.
Features:
AC input: 200-240VAC
Efficiency up to 79%
Dimming range: 0-100%, Load: 10-100%
PWM Output
Protections: short circuit/ over loading/over temperature
Cooling by free air convection
IP20 design
More Information Manufacturer Ecopac Power Output Wattage (W) 30 Output Voltage Choose Option Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 260 x 30 x 18.5 mm EMC Standards EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,11, EN61547 Input Voltage 200-240VAC Safety Standards EN61347-1, EN61347-2-13, EN62493, IP20 Output Voltage Options Single Working Temperature -40 ~ +60C PDF Datasheet ELED-30P-T-SL-1.pdf
More Information Manufacturer Ecopac Power Output Wattage (W) 30 Output Voltage Choose Option Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 260 x 30 x 18.5 mm EMC Standards EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,11, EN61547 Input Voltage 200-240VAC Safety Standards EN61347-1, EN61347-2-13, EN62493, IP20 Output Voltage Options Single Working Temperature -40 ~ +60C PDF Datasheet ELED-30P-T-SL-1.pdf
