Wattage:
Voltage:
EAN:
Manufacturer:

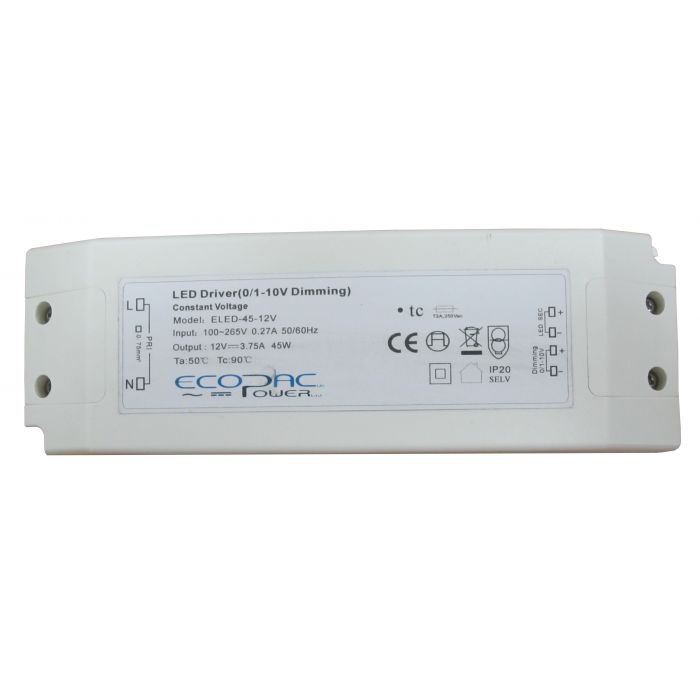

Three in one dimming function (0/1-10Vdc or PWM signal or resistance)Dimming range: 0-100%Universal AC input/full range 100-265VACBuilt-in active PFC function (>0.98)High efficiency up to 83%Protections: Short circuit/Over current/ Over loadingFully isolated plastic case with terminals IP20Compliance to worldwide safety regulations for lighting
More Information Manufacturer Ecopac Power Output Wattage (W) 45 Output Voltage 12V Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 179x 60.4x 35.2mm EMC Standards Compliance to EN55015, EN61000-3-2 (>50%load), Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, A light industry level Input Voltage 100-265Vac Safety Standards EN61347-2-13, IP66 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-45-V_Series.pdf
More Information Manufacturer Ecopac Power Output Wattage (W) 45 Output Voltage 12V Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 179x 60.4x 35.2mm EMC Standards Compliance to EN55015, EN61000-3-2 (>50%load), Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, A light industry level Input Voltage 100-265Vac Safety Standards EN61347-2-13, IP66 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-45-V_Series.pdf
