Wattage:
Voltage:
EAN:
Manufacturer:
Three in one dimming function (0/1-10Vdc or PWM signal or resistance)
IP66 design for indoor or outdoor installation
Protections: Short circuit/ Over Current/ Over Temperature / Over Loading
Other features:
Universal AC input/ Full range 100-265VAC
Built-in active PFC function
Dimming range: 0-100%
3 years warranty

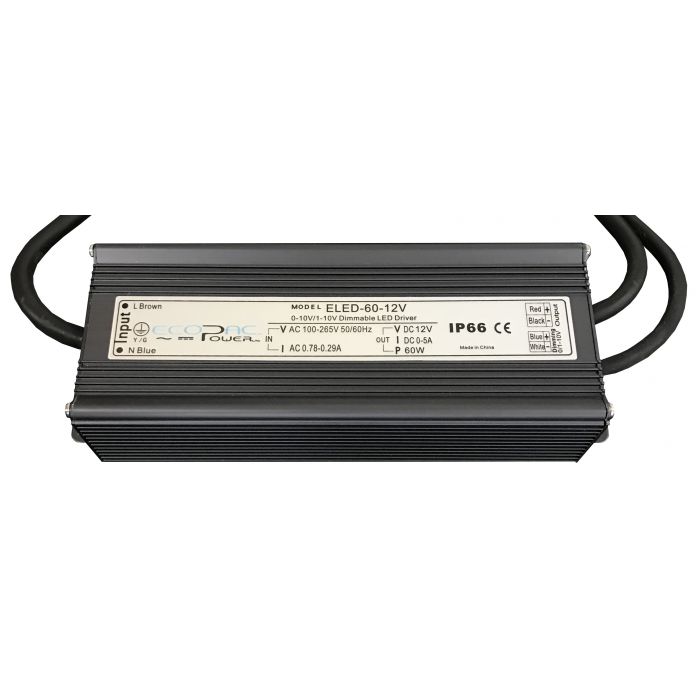

More Information Manufacturer Ecopac Power Output Wattage (W) 60 Output Voltage 12V Dimmable (Type) 0-10V, PCW Signal & Resistance Dimensions 200x 70x 46 EMC Standards Compliance to EN55015, EN61000-3-2 (>60% load) Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry level (surge 4KV) Criteria A Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-60-V.pdf
More Information Manufacturer Ecopac Power Output Wattage (W) 60 Output Voltage 12V Dimmable (Type) 0-10V, PCW Signal & Resistance Dimensions 200x 70x 46 EMC Standards Compliance to EN55015, EN61000-3-2 (>60% load) Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry level (surge 4KV) Criteria A Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-60-V.pdf
