Wattage:
Voltage:
EAN:
Manufacturer:

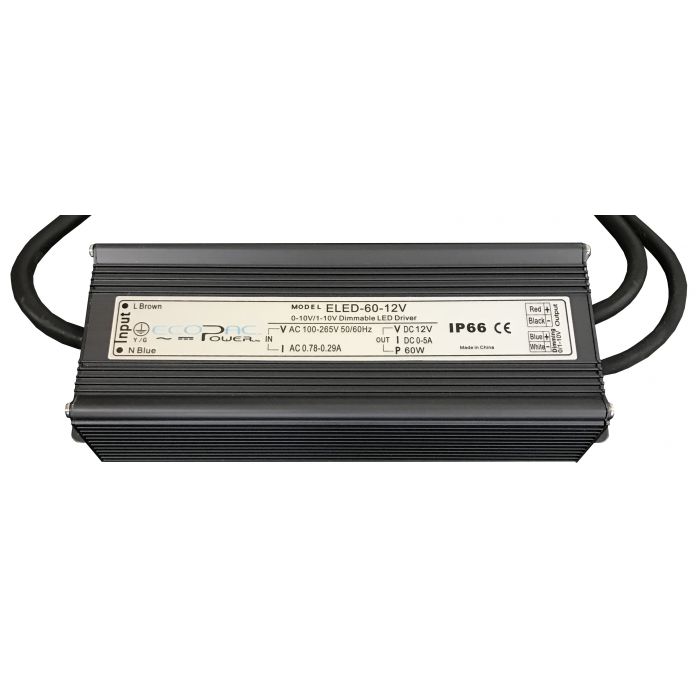

The Ecopac Power ELED-60-V Series of Constant voltage LED drivers feature a three in one dimming function (0/1-10Vdc or PWM signal or resistance). These high quality LED Drivers are supplied with a 3 year warranty. Available in both 12 & 24 volt output, please select from the dropdown below.
Key features:
Universal AC input/ Full range 100-265VAC
Built-in active PFC function
Dimming range: 0-100%
3 years warranty
IP66 rated suitable for indoor or outdoor installation
Short circuit protection
Over current protection
Over temperature protection
Over loading protection
More Information Manufacturer Ecopac Power Output Wattage (W) 60 Dimmable (Type) 0-10V, PCW Signal & Resistance Dimensions 200x 70x 46 EMC Standards Compliance to EN55015, EN61000-3-2 (>60% load) Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry level (surge 4KV) Criteria A Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-60-V.pdf
More Information Manufacturer Ecopac Power Output Wattage (W) 60 Dimmable (Type) 0-10V, PCW Signal & Resistance Dimensions 200x 70x 46 EMC Standards Compliance to EN55015, EN61000-3-2 (>60% load) Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry level (surge 4KV) Criteria A Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-60-V.pdf
