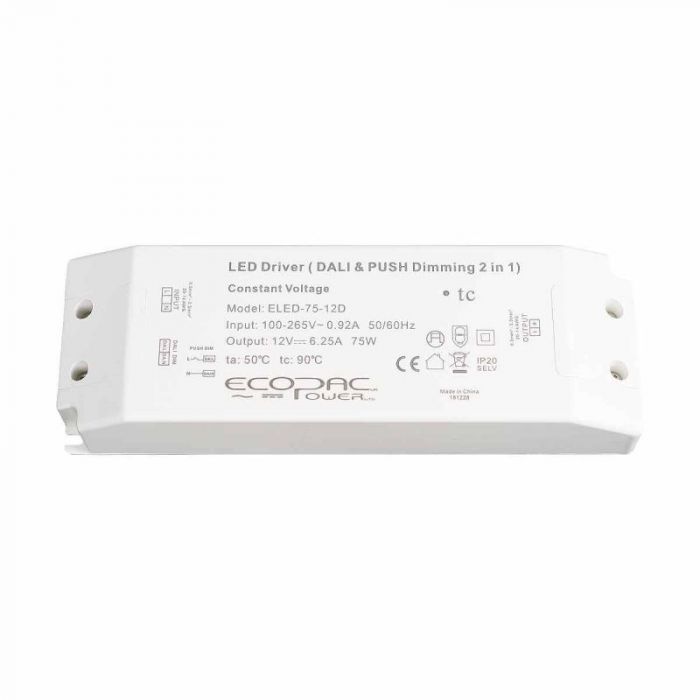

The Ecopac ELED-75-12D DALI Dimmable LED Driver is 75W 12VDC output.
Constant Voltage / PWM Output Design
Dali & Push Dimmable
Protections: Short circuit/ Over Voltage/ Over Temperature
Other features:
Dimming range from 0.1% to 100%
Input Range 200-265VAC
Output 12VDC
Built-in PFC function
IP20design for indoor or outdoor installations
87% efficiency
3 years warranty
More Information Manufacturer Ecopac Power Output Wattage (W) 75 Output Voltage 12V Dimmable (Type) DALI, Push Dimming DC Output Adjustment No Dimensions 355 x 215 x 215 mm EMC Standards Compliance to EN55015, EN61000-3-2, EN61000-3-3 (?60% load), EN61000-4-2,3,4,5,6,11, EN61547 Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13, EN62493, IP20 Output Voltage Options Single Working Temperature -40 ~ +60°C PDF Datasheet ELED-75-D.pdf
More Information Manufacturer Ecopac Power Output Wattage (W) 75 Output Voltage 12V Dimmable (Type) DALI, Push Dimming DC Output Adjustment No Dimensions 355 x 215 x 215 mm EMC Standards Compliance to EN55015, EN61000-3-2, EN61000-3-3 (?60% load), EN61000-4-2,3,4,5,6,11, EN61547 Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13, EN62493, IP20 Output Voltage Options Single Working Temperature -40 ~ +60°C PDF Datasheet ELED-75-D.pdf
