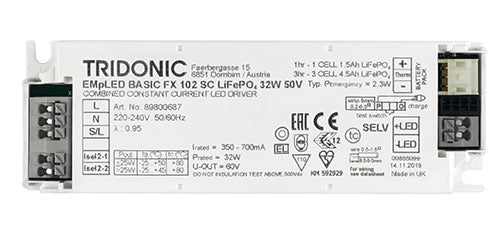

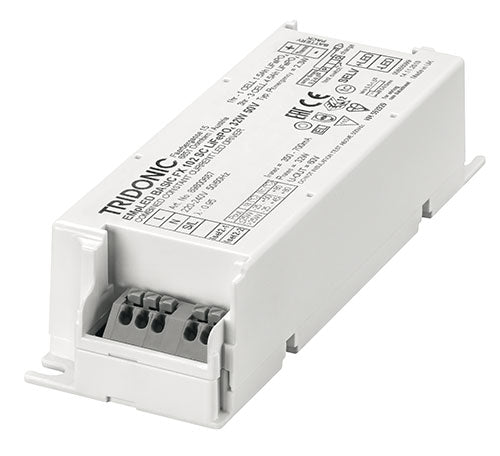

EM powerLED BASIC FX SC LiFePO4 32 W

Combined emergency lighting LED driver

Product description

• Combined emergency LED driver for manual testing
• For self-contained emergency lighting
• Can be either used build-in or independent with clip-on strain-relief (see accessory)
• Max. output power 32 W
• Nominal lifetime up to 100,000 h
• 5 years guarantee

Functions

• Adjustable output current between 350 and 700 mA via I-SELECT 2 plugs
• Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
• Suitable for emergency escape lighting systems acc. to EN 50172
• 1 or 3 h rated duration depending on connected battery
• Constant power output in emergency mode

Battery management

• Intelligent charge system
• Deep discharge protection
• Temperature protection
• Polarity reversal protection for battery provided by 3-pole connector

Batteries

• LiFePO4 batteries with Tridonic LiFeGuard
• Temperature-protected
• Overcharge-/Overdischarge protection
• Ensures safety in use
• Up to 8 year design life
• 3 years guarantee
• For battery compatibility refer to datasheet, battery selection
