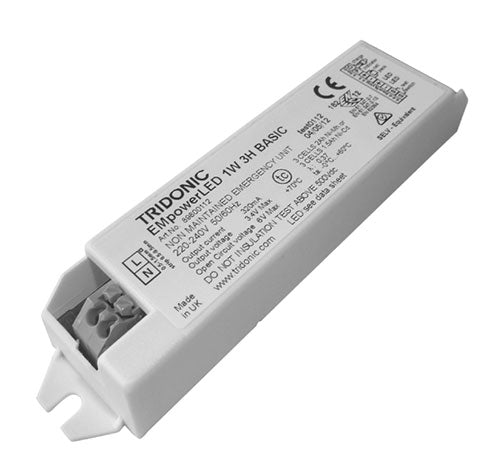

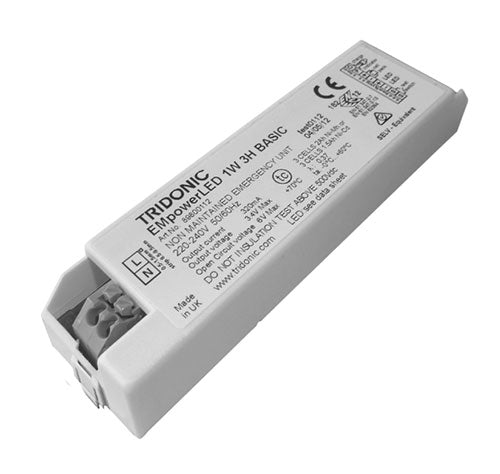

EM powerLED NM BASIC 1 W

Emergency lighting LED driver 1 W

•

  Screw-fix

•

  Clip-fix

•

  Screw-fix

•

  Clip-fix

Product description

• Emergency lighting LED driver for manual testing
• For self-contained emergency lighting
• Non maintained operation
• SELV for output voltage < 60 V DC
• Low profile casing (21 x 30 mm cross-section)
• 5 years guarantee

Properties

• Constant current mode
• With either screw or clip fastening (clip-fix)
• 3 h rated duration
• Green charge status display LED
• Electronic charge system
• SELV classified (outputs powerLED, battery, status LED, test switch)
• Polarity reversal protection for battery
• Deep discharge protection
• Very low energy consumption from the battery after activation of the deep discharge protection
• Short-circuit-proof battery connection
• Emergency lighting LEDs available
• Optional test switch

Batteries

• High-temperature cells
• NiMH batteries
• Cs cells
• 4 year design life
• 1 year guarantee
• For battery compatibility refer to data sheet
