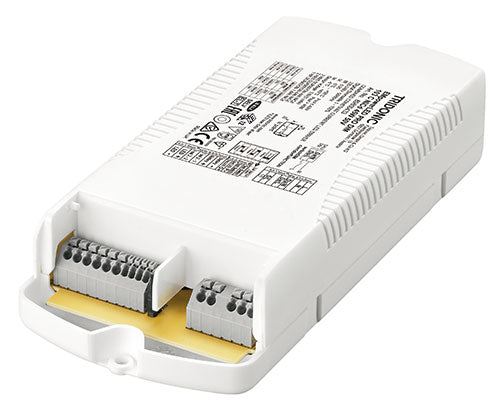

EM powerLED PRO DIM C 45 W

Combined emergency lighting LED driver

•
•

  Note: LED driver supplied with duration dip switch (2-way) in 3 hours position. Duration dip switch and I-SELECT 2 PLUG must be set before battery and mains connection.

Product description

• Dimmable built-in LED driver
• Emergency lighting LED driver with DALI interface and automatic test function
• For self-contained emergency lighting
• For LED modules with a forward voltage of 20 – 50 V
• SELV for output voltage < 60 V DC
• Compact plastic casing (183 x 82 x 34 mm)

Properties

• Output power 6 – 45 W
• Constant current LED operation
• 300 – 1,400 mA output current in mains operation, adjustable with I-SELECT 2 PLUG in steps of 25 mA or via DALI in steps of 1 mA
• Integrated emergency lighting unit
• 1, 2 or 3 h rated duration
• Operating time selectable with dip switch (2-way)
• Automatic shutdown of output if the forward voltage of the LED is out of range
• Two-colour status display LED
• Electronic multi-level charge system
• Pulse current charging for NiMH batteries
• Polarity reversal protection for battery
• Power-up fading at AC
• Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
• Deep discharge protection
• Short-circuit-proof battery connection
• 5 years guarantee

Interfaces

• one4all (DALI DT 1 & 6, DSI, switchDIM, corridorFUNCTION)
• Terminal blocks: 45° push terminals

Batteries

• High-temperature cells
• NiCd or NiMH batteries
• D, Cs, LA or LAL cells
• Battery box for independent use
• 4 year design life
• 1 year guarantee
• For battery compatibility refer to data sheet
