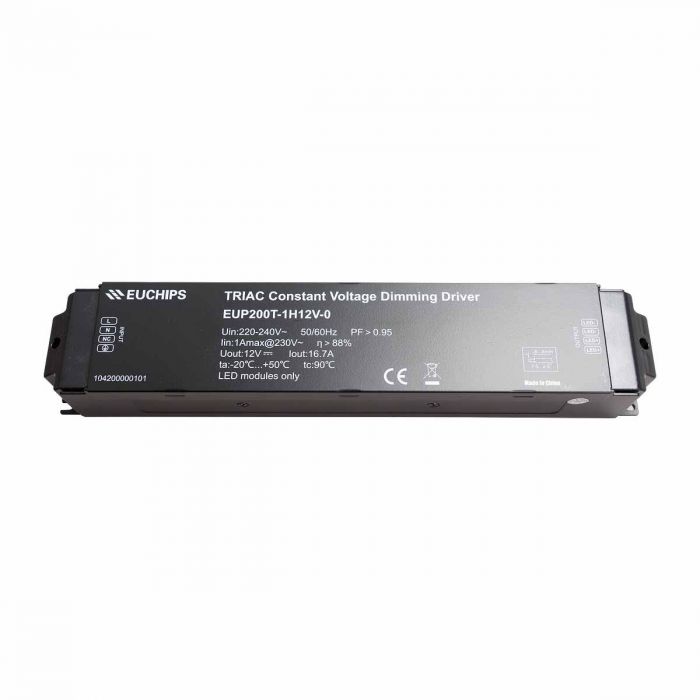

The EUCHIPS EUP200T-1HV Series LED Driver is mains dimmable, 200W and available in 12V & 24V output. Dimming is leading edge (Triac) and trailing edge (EVL).
Features
Dimming range from 40VAC to 240V AC
Dimming effect smooth, no flicker
High efficiency: up to 92%
Over current protection,Over voltage protection; Short circuit protection, over temperature protection
More Information Manufacturer EUCHIPS Output Wattage (W) 200 Output Voltage Choose Option Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 310 x 60 x 45 mm Input Voltage 220-240VAC Safety Standards CE Output Voltage Options Single Working Temperature -20 ~ +50C PDF Datasheet EUP200T-1H12V-0.pdf
More Information Manufacturer EUCHIPS Output Wattage (W) 200 Output Voltage Choose Option Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 310 x 60 x 45 mm Input Voltage 220-240VAC Safety Standards CE Output Voltage Options Single Working Temperature -20 ~ +50C PDF Datasheet EUP200T-1H12V-0.pdf
