Wattage:
Voltage:
EAN:
Manufacturer:

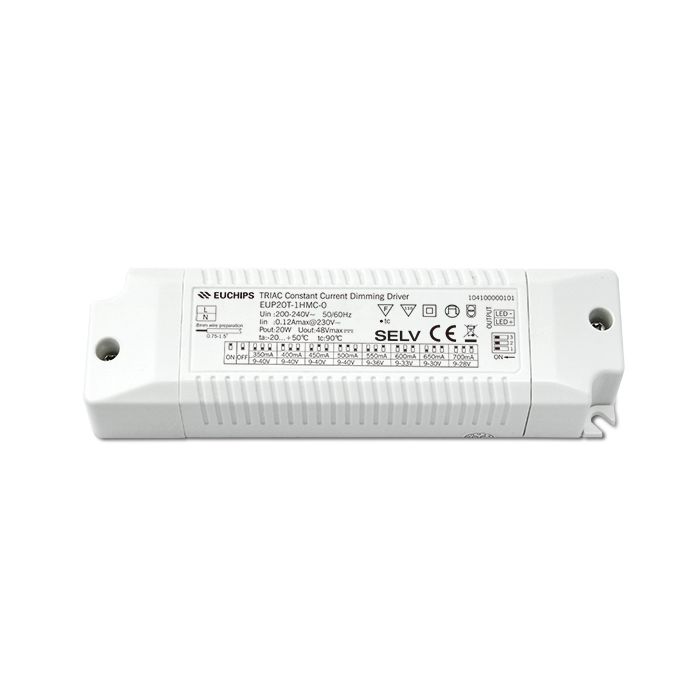

Constant current, traic dimmable LED driver, output current level selectable by DIP S.W.
Support Leading edge (Triac) and Trailing edge (ELV) dimmer
Dimming range from 40VAC to 240VAC
Built-in active PFC function Class 2 power supply. Full protective plastic housing
Dimming effect smooth, no flicker Protections:
Short circuit, over load, over temperature
Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
More Information Manufacturer EUCHIPS Output Wattage (W) 12 Output Current Selectable Dimmable (Type) Triac Leading edge & Trailing edge Output Voltage Range (V) 9-40VDC DC Output Adjustment Selectable Dimensions 150 x 43 x 29 mm Input Voltage 220-240VAC Output Voltage Options Single Working Temperature -20 ~ +50C PDF Datasheet EUP20T-1HMC-0 New.pdf
More Information Manufacturer EUCHIPS Output Wattage (W) 12 Output Current Selectable Dimmable (Type) Triac Leading edge & Trailing edge Output Voltage Range (V) 9-40VDC DC Output Adjustment Selectable Dimensions 150 x 43 x 29 mm Input Voltage 220-240VAC Output Voltage Options Single Working Temperature -20 ~ +50C PDF Datasheet EUP20T-1HMC-0 New.pdf
