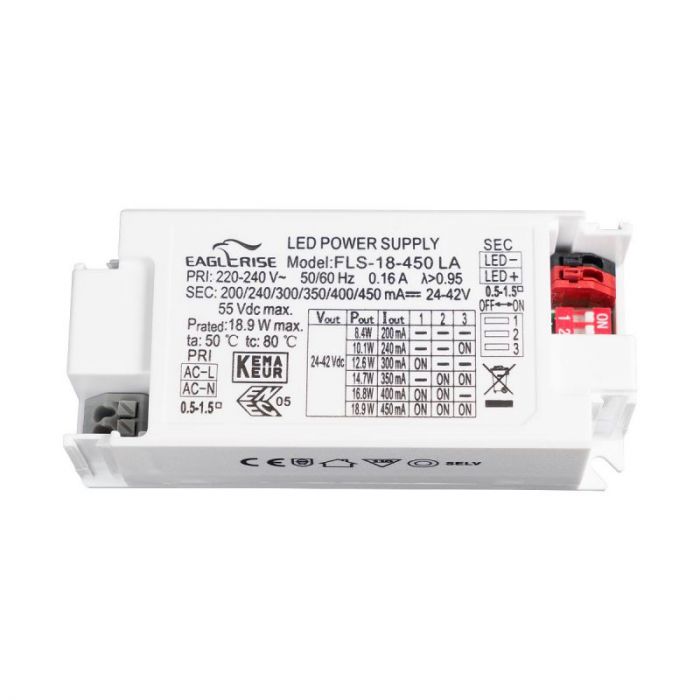

The Eaglerise FLS-18-450 LA Constant Current LED Driver features selectable output current between 200mA and 450mA via dip switches.
Built in protection against short circuit / over load & over voltage
IP20 rated
Power factor ?0.9
Efficiency ?81%
Class II, SELV
5 year warranty
Compact design 97 x 43 x 30 mm
More Information Manufacturer Eaglerise Output Wattage (W) 18 Output Current Selectable Dimmable (Type) No Output Voltage Range (V) 24-42VDC Dimensions 97 x 43 x 30 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature 0C - +50C PDF Datasheet FLS-18-450 LA.pdf
More Information Manufacturer Eaglerise Output Wattage (W) 18 Output Current Selectable Dimmable (Type) No Output Voltage Range (V) 24-42VDC Dimensions 97 x 43 x 30 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature 0C - +50C PDF Datasheet FLS-18-450 LA.pdf
