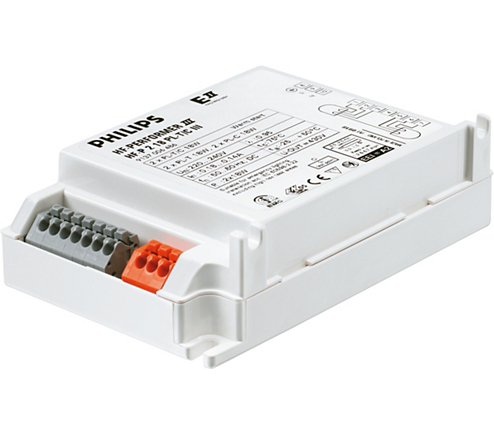

HF-P 1/2 18 PL-T/C III 220-240V Single or Twin 18W PLC/T

View Datasheet

General Information

Application Code	III
Lamp Type	PL-T/C
Number of Lamps	2 piece/unit

Number of Products on MCB (16A Type B) (Nom)	28
Automatic Restart	Yes

Operating and Electrical

Input Voltage	220 to 240 V
Input Frequency	50 to 60 Hz
Operating Frequency (Max)	- kHz
Operating Frequency (Min)	42 kHz
Operating Frequency (Nom)	45 kHz
Ignition Method	Warm Start
Crestfactor (Max)	1.7
Power Factor 100% Load (Nom)	0.95
Ignition Time (Max)	0.40 s

Mains Voltage Performance (AC)	-8%-+6%
Mains Voltage Safety (AC)	-10%-+10%
Earth Leakage Current (Nom)	0.5 mA
Inrush Current Width	0.250 ms
Constant Wattage Deviation	-2%/+2%
Ballast Factor (Nom)	1
Power Losses (Nom)	0.68-2.21 W
Inrush Current Peak (Max)	18 A
Efficiency at full load [%]	87.97 %
