HF-R 2 26-42 PL-T/C EII 220-240V 50/60Hz 1-10V Dimmable

913700626566

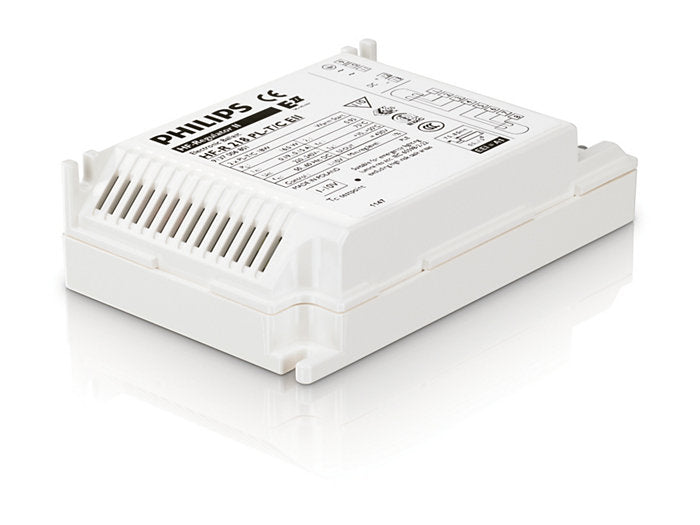

HF-R 2 26-42 PL-T/C EII 220-240V 50/60Hz Compact, high-frequency electronic dimming ballast, using the analog protocol (1-10 V) for PL-T, PL-C and PL-R lamps;The ballast is primarily designed for Indoor application. For outdoor application, the luminaire should be minimum ClassⅠand need to be sufficiently protected against water & dust. The installation should also be guard against any lightening surge or any other necessary electrical protection as deemed in such typical installation & application. Product data General information Application Code EII Type Version mk3 Lamp Type PL-T/C Number of Lamps 2 piece/unit Number of Products on MCB (16A Type B) (Nom) 12 Automatic Restart Yes Operating and electrical Input Voltage 220 to 240 V Input Frequency 50 to 60 Hz Operating Frequency (Max) 100 kHz Operating Frequency (Min) 40 kHz Ignition Method Programmed Start Crestfactor (Max) 1.7 Power Factor 100% Load (Nom) 0.95 Ignition Time (Max) 1.5 s Mains Voltage Performance (AC) -8%-+6% Mains Voltage Safety (AC) -10%-+10% Earth Leakage Current (Max) 0.5 mA Inrush Current Width 0.35 ms Constant Wattage Deviation -2%/+2% Ballast Factor (Nom) 0.99 Power Losses (Nom) 6.5-7.5 W Inrush Current Peak (Max) 45 A Efficiency at full load [%] 93.58 % Wiring Connector Type Input Terminals Insert Cable Capacity Output Wires Mutual (Nom) 30 pF Connector Type Output Terminals Insert Connector Type Control Input Terminals Insert Wire Striplength 7.5-8.5 mm Dual Fixture Master/Slave Not advisable [ Master/Slave operation not advised] Control Input Terminal Cross Section 0.50-1.50 mm² Input Terminal Cross Section 0.50-1.50 mm² Datasheet, 2022, January 14 data subject to change Lighting Lighting Output Terminal Cross Section 0.50-1.50 mm² Cable Capacity Output Wires to Earth (Nom) 75 pF System characteristics Rated Ballast-Lamp Power 26-42 W Temperature T-Ambient (Max) 50 °C T-Ambient (Min) -20 °C T-Storage (Max) 80 °C T-Storage (Min) -25 °C T-Case Lifetime (Nom) 65 °C T-Case Maximum (Max) 75 °C Stable Lamp Operation Temperature Not Specied T-Ignition (Max) 50 °C T-Ignition (Min) 0 °C Controls and dimming Control Interface 1-10V Regulating Level Power 1%-100% Control Input Protection Yes (Basic insulation) Mechanical and housing Housing S 123x79x33 Emergency operation Battery Voltage Lamp Ignition 198-254 V Battery Voltage Lamp Operation 176-254 Approval and application Energy Efficiency Index A1 BAT IP Classification IP 20 [ Ingress Protection 20] EMI 9 kHz ... 30 MHz EN55015 EMI 30 MHz ... 1000 MHz EN55022 level B Safety Standard IEC 61347-2-3 Performance Standard IEC 60929 Quality Standard ISO 9000:2000 Environmental Standard ISO 14001 Harmonic Current Emission Standard IEC 61000-3-2 EMC Immunity Standard IEC 61547 Vibration Standard IEC68-2-6 F c Bumps Standard IEC 68-2-29 Eb Humidity Standard EN 61347-2-3 clause 11 Approval Marks CE marking ENEC certicate VDE-EMV certicate Temperature Marking Yes Emergency Standard IEC 60598-2-22 Hum And Noise Level Inaudible Product data Full product code 872790080972500 Order product name HF-R 2 26-42 PL-T/C EII 220-240V 50/60Hz EAN/UPC - Product 8711500880758 Order code 913700626566 Numerator - Quantity Per Pack 1 Numerator - Packs per outer box 12 Material Nr. (12NC) 913700626566 Net Weight (Piece) 0.23
