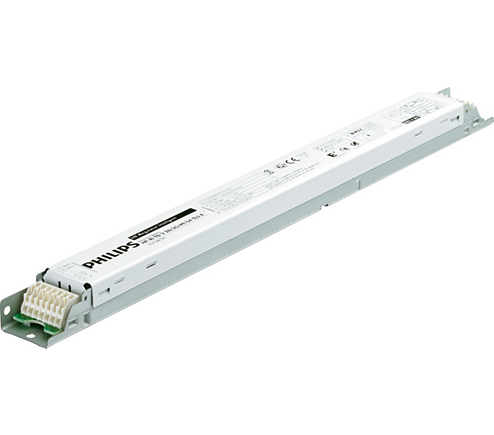

HF-Ri TD 2 28/35/49/54 TL5 E+ 195-240V 913700695866 Dali Dimmable

Specifications

General Information

Remarks	UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Application code	E+
Type version	mk2
Lamp type	TL5

Number of lamps	2 piece/unit
Number of products on MCB (16 A type B) (nom.)	18
Automatic restart	Yes

Operating and Electrical

Input Voltage	195-240 V
Input frequency	50 to 60 Hz
Operating frequency (max.)	110 kHz
Operating frequency (min.)	45 kHz
Ignition method	Warm Start
Crest factor (max.)	1.7
Power factor 100% load (nom.)	0.95
Ignition time (max.)	1 s
Mains voltage performance (AC)	-8%-+6%

Mains voltage safety (AC)	-10%-+10%
Earth leakage current (max.)	0.5 mA
Inrush current width	0.25 ms
Standby power consumption (max.)	0.25 W
Ballast factor (nom.)	1
Power losses (nom.)	7.2 W
Inrush current peak (max.)	28 A

Wiring

Connector type input terminals	WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Cable capacity output wires mutual (max.)	200 pF
Connector type output terminals	WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Connector type control input terminals	WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Wire strip length	8.0-9.0 mm

Dual fixture master/slave	Yes  [ Master/Slave operation possible]
Control input terminal cross section	0.50-1.00 mm²
Input terminal cross section	0.50-1.00 mm²
Output terminal cross section	0.50-1.00 mm²
Auto-insert (ALF/ADS) wire cross section	0.75 mm²
Cable capacity output wires to earth (max.)	200 pF

System characteristics

Rated ballast-lamp power	28-35-49-54 W
Rated lamp power on TL-D	58 W
System power on TL-D	108.1 W
Lamp power on TL-D	101.1 W
Power loss on TL-D	7.1 W
Rated lamp power on PL-L	55 W
System power on PL-L	108.4 W
Lamp power on PL-L	101.6 W
Power loss on PL-L	6.8 W
Rated lamp power on TL5	28/35/49/54 W
System power on TL5	63.0/77.9/111.4 W

Lamp power on TL5	58.9/73.6/107.2/113.4 W
Power loss on TL5	4.1/4.3/4.2/6.3 W
Rated lamp power on TL5 ECO	25/32/45/50 W
System power on TL5 ECO	53.7/70.3/99.7/108.7 W
Lamp Power on TL5 ECO	50.8/66.5/95.6/102.7 W
Rated lamp power on TL-D ECO	51 W
System power on TL-D ECO	95.8 W
Power loss on TL-D ECO	6.0 W
Lamp power on TL-D ECO	89.8 W
Power loss on TL5 ECO	2.9/3.8/4.1/6.0 W

Temperature

T-ambient (max.)	50 °C
T-ambient (min.)	-25 °C
T storage (max.)	80 °C
T storage (min.)	-40 °C
T case lifetime (max.)	75 °C

T-Case maximum (max.)	75 °C
Stable lamp operation temperature	15°C
T-Ignition (max.)	50 °C
T-Ignition (min.)	-25 °C

Controls and Dimming

Control interface	TD
Regulating level power	1%-100%

Control input protection

Yes (Basic insulation)

Mechanical and Housing

Housing

L 359x30x21

Emergency Operation

Battery voltage lamp ignition	198-254 V
Battery voltage lamp operation	176-254

Approval and Application

Energy efficiency index	A1 BAT
IP classification	IP 20  [ Ingress Protection 20]
EMI 9 kHz ... 30 MHz	EN55015
EMI 30 MHz ... 1,000 MHz	EN 55022 Class B
Safety standard	IEC 61347-2-3
Performance standard	IEC 60929
Quality standard	ISO 9000:2000
Environmental standard	ISO 14001
Harmonic current emission standard	IEC 61000-3-2

EMC immunity standard	IEC 61547
Vibration standard	IEC68-2-6 F c
Bumps standard	IEC 68-2-29 Eb
Humidity standard	EN 61347-2-3 clause 11
Approval marks	CE marking ENEC certificate VDE-EMV certificate
Temperature marking	Yes
Emergency standard	IEC 60598-2-22
Humming and noise level	Inaudible

Product Data

Full product code	871829166209900
Order product name	HF-Ri TD 2 28/35/49/54 TL5 E+ 195-240V
EAN/UPC – product	8718291662099
Order code	66209900
Local order code	HFRITD22854T5PL

SAP numerator – quantity per pack	1
Numerator – packs per outer box	12
SAP material	913700695866
SAP net weight (piece)	0.316 kg
