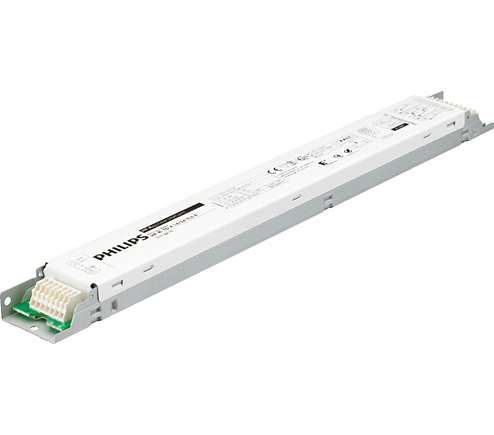

HF-Ri TD 4 14/24 TL5 E+ 195-240V

General Information

Remarks	UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Application code	E+
Type version	mk4

Lamp type	TL5
Number of lamps	4 piece/unit
Number of products on MCB (16 A type B) (nom.)	16
Automatic restart	Yes

Operating and Electrical

Input Voltage	195-240 V
Input frequency	50 to 60 Hz
Operating frequency (max.)	110 kHz
Operating frequency (min.)	45 kHz
Ignition method	Warm Start
Crest factor (max.)	1.7
Power factor 100% load (nom.)	0.95
Ignition time (max.)	1 s
Mains voltage performance (AC)	-8%-+6%

Mains voltage safety (AC)	-10%-+10%
Earth leakage current (max.)	0.5 mA
Inrush current width	0.26 ms
Standby power consumption (max.)	0.25 W
Ballast factor (nom.)	1.0
Inrush current peak (max.)	31 A
Efficiency at full load [%]	90.60000000000001 %
