Wattage:
Voltage:
EAN:
Manufacturer:
Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
IP67 design for indoor or outdoor installations
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
Universal AC input (up to 305VAC) / Full range
High efficiency up to 95%
Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
Cooling by free air convection
Suitable for LED lighting and street lighting applications
Meet 4KV surge immunity level (IEC61000-4-5)
Built-in active PFC function, PF>0.9 for 60% of load or higher
5 years warranty

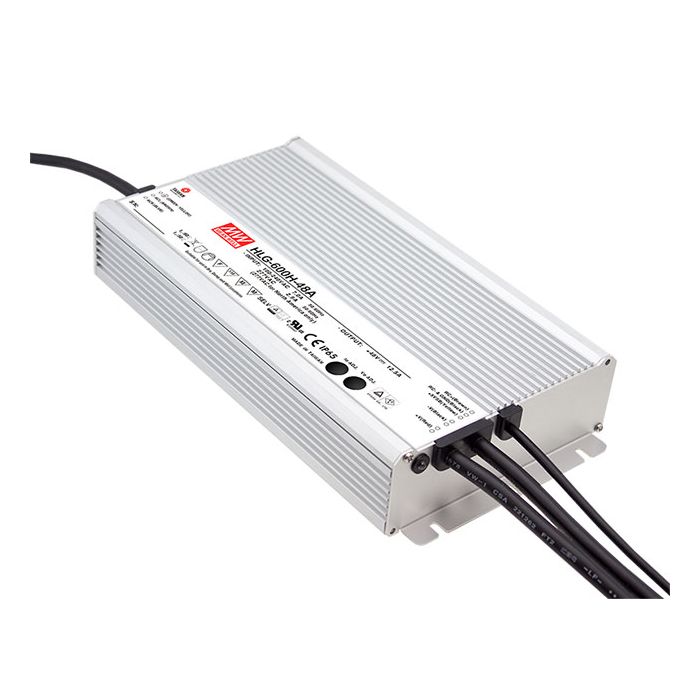

More Information Manufacturer Mean Well Output Wattage (W) 560 Output Voltage 20V Dimensions 275x 145x 45 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A Input Voltage 90~305VAC 127~431VDC Safety Standards UL8750, CSA C22.2 No. 250.13-12, EN61347-1, EN61347-2-13 independent, IP67 Output Voltage Options Single Working Temperature -40°C~+70°C (Refer to "Derating Curve") PDF Datasheet HLG-600H-spec_15.pdf
More Information Manufacturer Mean Well Output Wattage (W) 560 Output Voltage 20V Dimensions 275x 145x 45 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A Input Voltage 90~305VAC 127~431VDC Safety Standards UL8750, CSA C22.2 No. 250.13-12, EN61347-1, EN61347-2-13 independent, IP67 Output Voltage Options Single Working Temperature -40°C~+70°C (Refer to "Derating Curve") PDF Datasheet HLG-600H-spec_15.pdf
