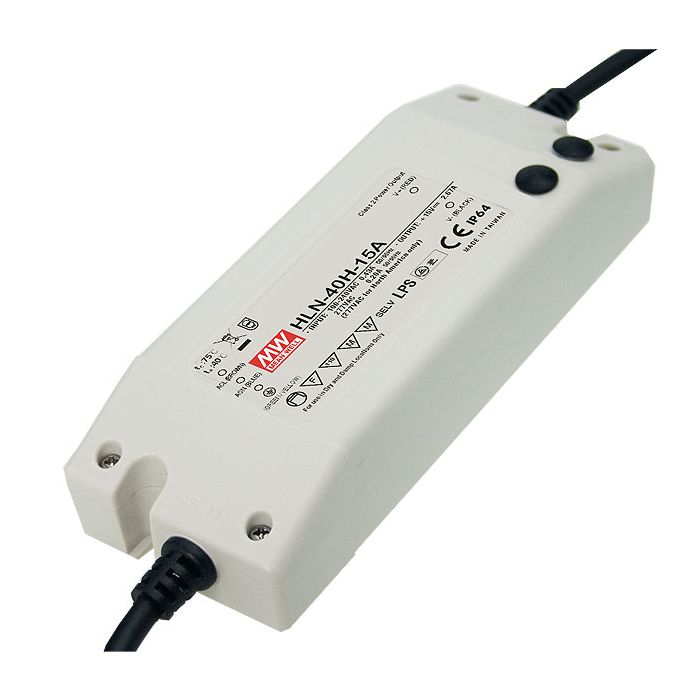

Built-in active PFC function, PF> 0.9 for 60% load or higherBuilt-in constant current limiting circuit (C.V. + C.C mode) Protections: Short circuit/ Over current/ Over voltage/ Over temperature Other features:Universal AC input (up to 305VAC) / Full rangeFully isolated plastic case with IP64 levelClass 2 power unitHigh efficiency up to 91%Cooling by free air convectionSuitable for dry, damp locationsSuitable for LED lighting and moving sign applicationsIP64 rated. Output and C.C level can be adjusted through internal potentiometer3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 40 Output Voltage 42V Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment +/-10% rated output voltage EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1, UL8750, TUV EN61347-1, ENG1347-2-13, PSE J61347-1 Output Voltage Options Single Working Temperature -40~+50°C (refer to output derating curve) PDF Datasheet HLN-40H-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 40 Output Voltage 42V Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment +/-10% rated output voltage EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1, UL8750, TUV EN61347-1, ENG1347-2-13, PSE J61347-1 Output Voltage Options Single Working Temperature -40~+50°C (refer to output derating curve) PDF Datasheet HLN-40H-spec.pdf
