• Operates With Extra Long Life LiFePO4 Batteries
• Suitable for Integral Mounting Applications.
• Deep Discharge Protection
• Operates Single 4V Load
• Can be Supplied with Emergency LED
• 350mA Output for Single Chip
A switchable maintained/non-maintained 3 hour emergency
lighting driver that operates at 350mA in both emergency and
mains operation. This unit is designed as an emergency lighting
driver, not for continuous use.
This module will power a single (4V Max) LED chip.
Order Code
HLP/1/350-K Module, Battery and Charge LED with Mounting Collar
The Battery Supplied is a 3.2V 3.8Ah LiFePO4 in Stick Formation on a Mounting Plate
Technical Details:
Mains Supply 230-240V AC 50/60 Hz Max Ta and Tc Ta - 50 °C - Tc - 70 °C
Power Rating - Maintained 4.9W 51mA λ = 0.41 Overall Weight 0.4Kg
- Non-Maintained 2.0W 25mA λ = 0.35 Battery Discharge Current 660mA nominal
- Charged * 0.45W 7.5mA λ = 0.24 Recharge Period 24-Hours
Duration 3-Hours Discharge Voltage Cut Off 2.5 Volts
Battery Size & Type 3.2V 3.8Ah LiFePO4 Ingress Protection IP20
Charge Current 225mA Nominal Mains Input Terminal 1.0mm² - 1.5 mm²

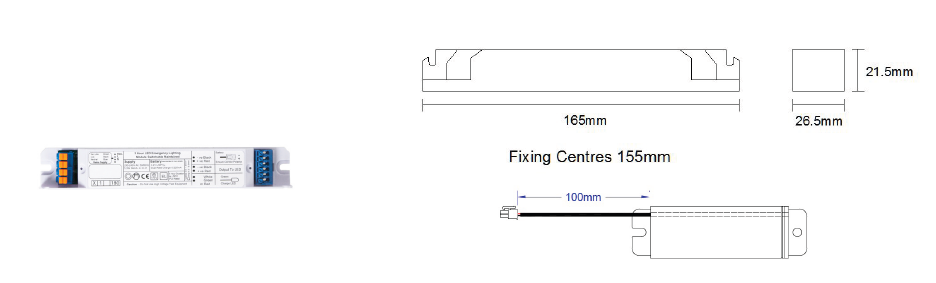

Max Battery Temperature 55 °C Module Dimensions (LxWxH) 165mm x 26.5mm x 21.5mm
Battery Dimensions (LxØ) 90mm x 26.5mm Module Fixing Centres 155mm
Battery Fixing Centres 80mm
* Following its initial charge, the HLP/1/350 will spend 90% of its operational life in standby mode
Tel +44 (0)1708 372223 | www.liteplan.com | customerservice@liteplan.com | RM3 0AP. UK
Technical Specification
HLP/1/350 - Maintained/Non-Maintained Driver
Liteplan reserve the right to change colour, price or specification without prior notice
ISS 230322
The HLP/1/350 is supplied as a maintained/non-maintained
emergency driver for integral mounting within a luminaire.
