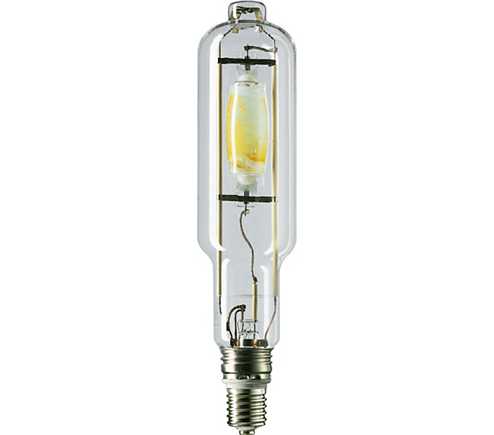

HPI-T HPI-T 2000W/542 E40 380V 1SL/4

Specifications

General information

Cap base	E40  [ E40]
Operating position	P20  [ Parallel +/-20D or Horizontal(HOR)]
Life to 5% failures (nom.)	3000 h
Life to 10% failures (nom.)	5500 h

Life to 20% failures (nom.)	8000 h
Life to 50% failures (nom.)	12000 h
System description	High Output (HO)

Light technical

Colour Code	542  [ CCT of 4,200 K]
Luminous flux (rated) (min.)	180000 lm
Luminous flux (rated) (nom.)	200000 lm
Colour designation	Cool White (CW)
Lumen maintenance 10,000 hours (nom.)	75 %
Lumen maintenance 2,000 hours (nom.)	90 %

Lumen maintenance 5,000 hours (nom.)	80 %
Chromaticity coordinate X (nom.)	387
Chromaticity coordinate Y (nom.)	403
Correlated Colour Temperature (Nom)	3800 K
Luminous efficacy (rated) (nom.)	101 lm/W
Colour rendering index (nom.)	59

Operating and electrical

Lamp supply voltage	380 V  [ 380]
Power (Rated) (Nom)	1980 W
Lamp current run-up (max.)	15.3 A
Lamp current (EM) (nom.)	9.1 A
Ignition peak voltage (max.)	5000 V

Ignition supply voltage (min.)	342 V
Ignition time (max.)	30 s
Voltage (Max)	247 V
Voltage (Min)	217 V
Voltage (Nom)	232 V

Controls and dimming

Dimmable

No

Mechanical and housing

Lamp Finish

Clear

Bulb shape

T100  [ T 100mm]

Approval and application

Mercury (Hg) content (nom.)

256 mg

Energy consumption kWh/1,000 hours

2178 kWh

Luminaire design requirements

Bulb temperature (max.)	600 °C
Cap-base temperature (max.)	300 °C

Cap-Base Temperature (Max)-DUP(do not use)

572 °F

Product data

Full product code	871150020235245
Order product name	HPI-T 2000W/542 E40 380V 1SL/4
EAN/UPC – product	8711500202352
Order code	20235245
Local order code	4152000HPITN
SAP numerator – quantity per pack	1

Calculated local code description B2B	LAMPADA HALETO METALICO HPIT2000W-H
Numerator – packs per outer box	4
SAP material	928074209228
Net Weight (Piece)	586.000 g
ILCOS code	MT-2000/42/2B-H-E40-/H
