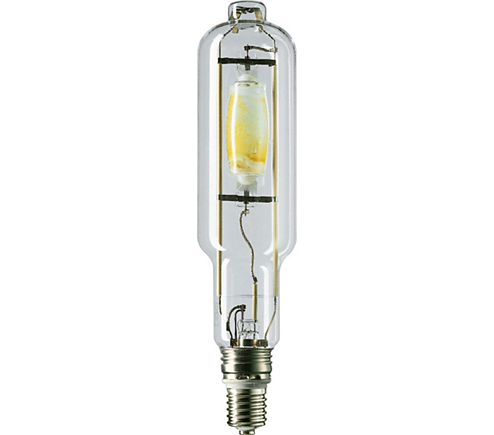

Philips HPIT2000 Philips 18376745 240V

Specifications

General Information

Cap base	E40  [ E40]
Operating position	P75  [ Parallel +/-75D or Horizontal(HOR)]
Life to 5% failures (nom.)	3000 h
Life to 10% failures (nom.)	5500 h

Life to 20% failures (nom.)	8000 h
Life to 50% failures (nom.)	12000 h
System description	na  [ -]

Light Technical

Colour Code	646  [ CCT of 4,600 K]
Luminous flux (rated) (min.)	182000 lm
Luminous flux (rated) (nom.)	189000 lm
Colour designation	Cool White (CW)
Lumen maintenance 10,000 hours (nom.)	60 %
Lumen maintenance 2,000 hours (nom.)	77 %
Lumen maintenance 5,000 hours (nom.)	67 %

Chromaticity coordinate X (nom.)	375
Chromaticity coordinate Y (nom.)	385
Correlated Colour Temperature (Nom)	4200 K
Luminous efficacy (rated) (nom.)	95 lm/W
Colour rendering index (nom.)	63

Operating and Electrical

Lamp supply voltage	220 V  [ 220]
Power (Rated) (Nom)	1980 W
Lamp current run-up (max.)	28.4 A
Lamp current (EM) (nom.)	16.5 A
Ignition peak voltage (max.)	5000 V

Ignition supply voltage (min.)	198 V
Ignition time (max.)	30 s
Voltage (Max)	140 V
Voltage (Min)	120 V
Voltage (Nom)	130 V

Controls and Dimming

Dimmable

No

Mechanical and Housing

Lamp Finish

Clear

Approval and Application

Energy efficiency label (EEL)	A+
Mercury (Hg) content (nom.)	155 mg

Energy consumption kWh/1,000 hours

2178 kWh

Luminaire Design Requirements

Bulb temperature (max.)	600 °C
Cap-base temperature (max.)	300 °C

Product Data

Full product code	871150018376745
Order product name	HPI-T 2000W/646 E40 220V CRP/4
EAN/UPC – product	8711500183767
Order code	18376745
Local order code	2000HPIT
SAP numerator – quantity per pack	1

Numerator – packs per outer box	4
SAP material	928073609231
SAP net weight (piece)	569.000 g
ILCOS code	MT-2000/46/2B-H-E40-/H
