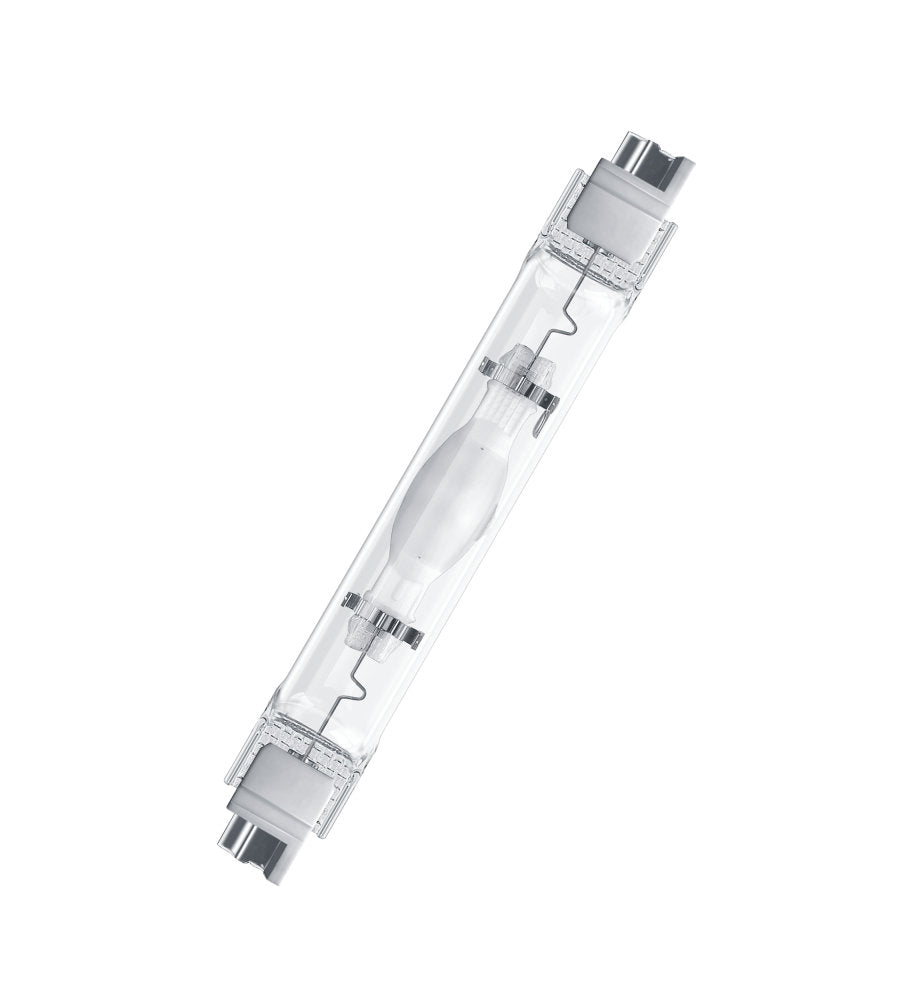

HQI-TS 400 W/D FC2 Osram

_ High efficiency Uniform distribution of light Good to excellent color rendering Long lifetime Hot restrike capable UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter Product datasheet HQI-TS 400 W/D POWERSTAR HQI-TS | Metal halide lamps with quartz technology for enclosed luminaires _ Foyers, reception areas Factory and hall lighting with lowcost installations Exhibition halls and trade fairs Sports halls and multi-purpose halls Pedestrian zones, public squares Parks and gardens Buildings, monuments, bridges Approved only for use in enclosed luminaires Outdoor applications only in suitable luminaires __ May 4, 2021, 19:06:27 © 2021, OSRAM GmbH. All rights reserved. HQI-TS 400 W/D Page 1 of 6 Technical data Electrical data Nominal wattage 400.00 W Rated wattage 400.00 W Lamp current 4.0 A PFC capacitor at 50 Hz 45 µF 1) Nominal voltage 118 V Ignition voltage 4.0 kVp;25 kVp 2) Nominal current 4 A 1) At rated voltage and cos ϕ ≥ 0.9 2) Minimum;Maximum Photometrical data Rated lamp efficacy (standard condition) 83 lm/W Rated luminous flux 35000 lm Color rendering index Ra 93 Color temperature 5500 K Light color 955 Rated LLMF at 2,000 h 0.70 Rated LLMF at 4,000 h 0.60 Rated LLMF at 6,000 h 0.55 Rated LLMF at 8,000 h 0.52 Rated LLMF at 12,000 h 0.50 UV protection Yes Nominal luminous flux 35000 lm Rated color temperature 5500 K Light color (designation) Daylight Luminous flux 35000 lm Product datasheet __ May 4, 2021, 19:06:27 © 2021, OSRAM GmbH. All rights reserved. HQI-TS 400 W/D Page 2 of 6 Dimensions & weight Diameter 33.0 mm Length 206.0 mm Light center length (LCL) 103.0 mm Product weight 88.00 g Outer bulb T31 Overall length 206.0 mm Temperatures & operating conditions Maximum permitted outer bulb temperature 750 °C Maximum permitted pinch temperature 300 °C Lifespan Rated lamp survival factor at 2,000 h 0.80 Rated lamp survival factor at 4,000 h 0.70 Rated lamp survival factor at 6,000 h 0.60 Rated lamp survival factor at 8,000 h 0.55 Rated lamp survival factor at 12,000 h 0.50 Lifespan B50 12000 h Additional product data Base (standard designation) Fc2 Product remark With NAV control gear Design / version clear Mercury content 40.0 mg Appropriate disposal acc. to WEEE Yes Mercury-free No Product datasheet __ May 4, 2021, 19:06:27 © 2021, OSRAM GmbH. All rights reserved. HQI-TS 400 W/D Page 3 of 6 Capabilities Dimmable No Burning position p45 Enclosed luminaire required Yes Hot restart Yes Certificates & standards Energy efficiency class A Energy consumption 462 kWh/1000h Country specific categorizations ILCOS MD/UB-400/856-H/E/SL-Fc2-25/162/H Order reference HQI-TS 400W/D P Light Distribution HQI_T_D_PRO Product datasheet __ May 4, 2021, 19:06:27 © 2021, OSRAM GmbH. All rights reserved. HQI-TS 400 W/D Page 4 of 6 OPERATION OF HIGH INTENSITY DISCHARGE LAMPS WITH SEMI-PARALLEL IGNITION UNIT OPERATION OF HIGH INTENSITY DISCHARGE LAMPS WITH A SUPERIMPOSED IGNITION UNIT OPERATION OF HIGH INTENSITY DISCHARGE LAMPS WITH PULSE IGNITION UNIT Logistical Data Product code Product description Packaging unit (Pieces/Unit) Dimensions (length x width x height) Volume Gross weight 4008321689191 HQI-TS 400 W/D Shipping carton box 12 Pieces Sleeves 216 mm x 166 mm x 272 mm 9.75 dm³ 1464.00 g The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or more single products. When placing an order, for the quantity please enter single or multiples of a shipping unit. Disclaimer Subject to change without notice. Errors and omission excepted. Always make sure to use the most recent release. Product datasheet __ May 4, 2021, 19:06:27 © 2021, OSRAM GmbH. All rights reserved. HQI-TS 400 W/D Page 5 of 6 Product datasheet __ May 4, 2021, 19:06:27 © 2021, OSRAM GmbH. All rights reserved. HQI-TS 400 W/D Page 6 of 6
