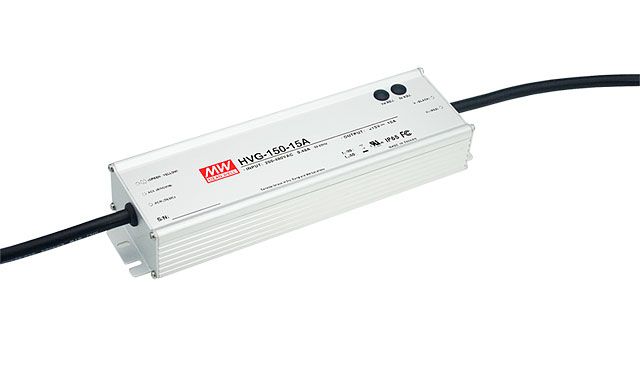

Wide input range 180~528VACHigh efficiency up to 91.5%Built-in active PFC functionProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Cooling by free air convectionOutput voltage and CC level can be adjusted through internal potentiometerIP65 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry / damp / wet locations5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Voltage 30V DC Output Adjustment 27~33 Dimensions 245x 68x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC 254VDC~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, IP65 approved Output Voltage Options Single Working Temperature -40 ~ +70? (Refer to "Derating Curve") PDF Datasheet HVG-150-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Voltage 30V DC Output Adjustment 27~33 Dimensions 245x 68x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC 254VDC~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, IP65 approved Output Voltage Options Single Working Temperature -40 ~ +70? (Refer to "Derating Curve") PDF Datasheet HVG-150-spec.pdf
