Wattage:
Voltage:
EAN:
Manufacturer:
Wide input range 180~528VACHigh efficiency up to 91.5%Built-in active PFC functionProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Cooling by free air convection3 in 1 dimming function (0~10Vdc, 10V PWM signal or resistance)IP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry / damp / wet locations5 years warranty

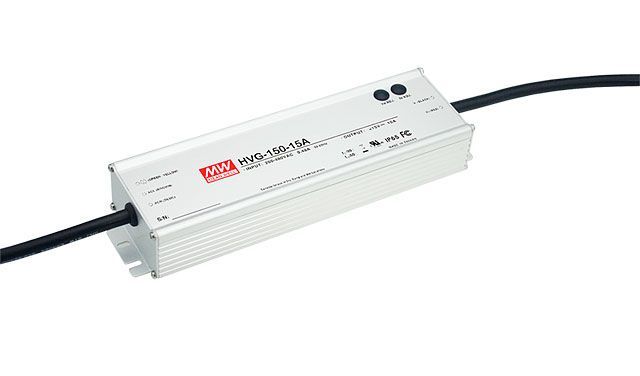

More Information Manufacturer Mean Well Output Wattage (W) 150 Dimmable (Type) No DC Output Adjustment Yes Dimensions 245x 68x 38.8 (LxWxH) mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC 254VDC~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, IP67 approved Output Voltage Options Single Working Temperature -10~+60°C PDF Datasheet HVG-150-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 150 Dimmable (Type) No DC Output Adjustment Yes Dimensions 245x 68x 38.8 (LxWxH) mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC 254VDC~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, IP67 approved Output Voltage Options Single Working Temperature -10~+60°C PDF Datasheet HVG-150-spec.pdf
