Wattage:
Voltage:
EAN:
Manufacturer:

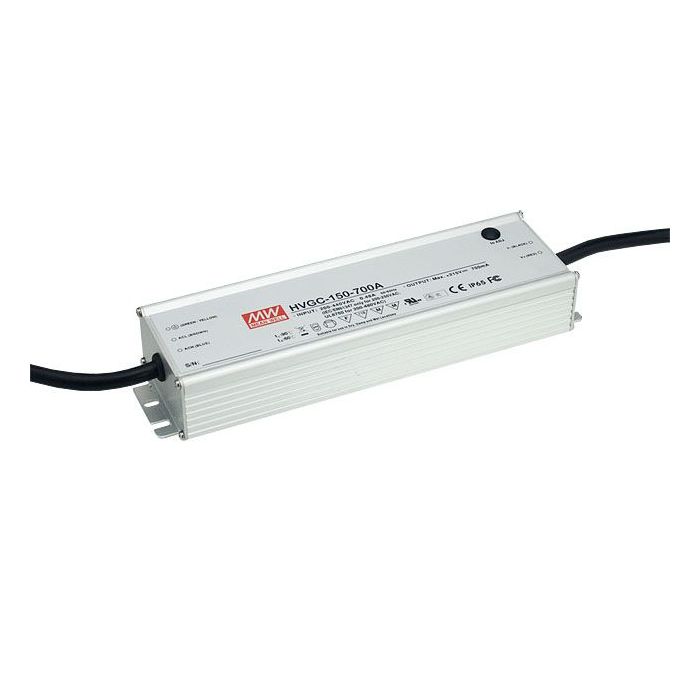

Constant current designWide input range 180~528VACThree in one dimming function (0~10Vdc or 10V PWM signal or resistance)Protections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Built-in active PFC functionHigh efficiency up to 90.5%Cooling by free air convectionIP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry/ damp/ wet locations5 year warranty
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 245x 68x 38.8 (LxWxH) mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Safety Standards UL8750, CSA C22.2 No. 250.0-08, IP65 approved Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet HVGC-65-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 245x 68x 38.8 (LxWxH) mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Safety Standards UL8750, CSA C22.2 No. 250.0-08, IP65 approved Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet HVGC-65-spec.pdf
