Wattage:
Voltage:
EAN:
Manufacturer:

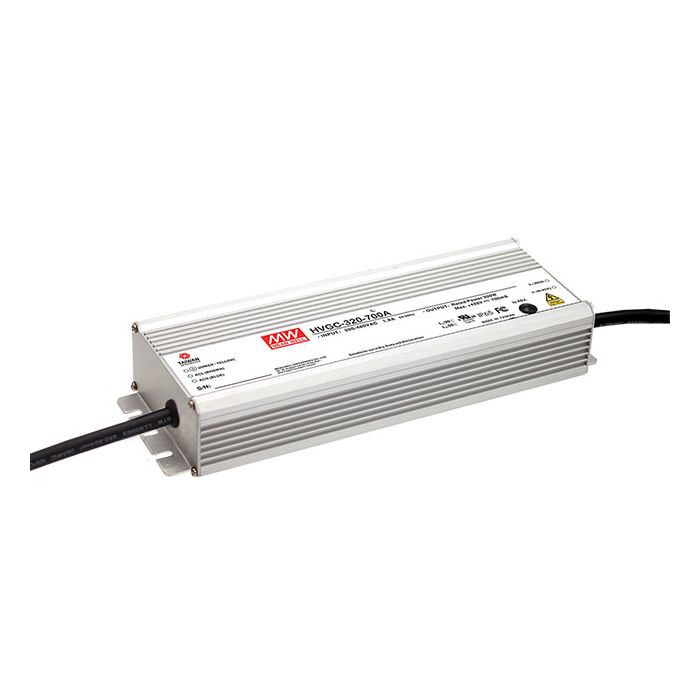

Wide input range 180~528VACHigh efficiency up to 91%Built-in active PFC functionProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Constant current designCooling by free air convection3 in 1 dimming function (0~10Vdc, 10V PWM signal or resistance)IP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry / damp / wet locations5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 320 Output Current 2800mA Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 57~114.3 Dimensions 262x 90x 43.8 EMC Standards Compliance to FCC Part 15 Subpart B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (Surge immunity Line-Earth 4KV, Line-Line 2KV) Criteria A Input Voltage 180~528VAC 254VDC~747VDC Safety Standards UL8750 (type ???HL???), CSA C22.2 No. 250. 13-12, IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase=-40~+90???C (Refer to "Derating Curve") PDF Datasheet HVGC-320-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 320 Output Current 2800mA Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 57~114.3 Dimensions 262x 90x 43.8 EMC Standards Compliance to FCC Part 15 Subpart B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (Surge immunity Line-Earth 4KV, Line-Line 2KV) Criteria A Input Voltage 180~528VAC 254VDC~747VDC Safety Standards UL8750 (type ???HL???), CSA C22.2 No. 250. 13-12, IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase=-40~+90???C (Refer to "Derating Curve") PDF Datasheet HVGC-320-spec.pdf
