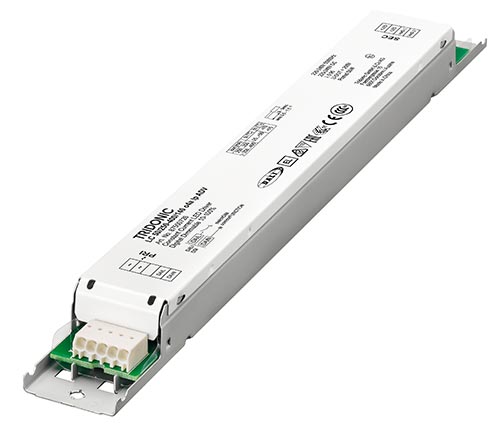

Driver LC 50W 250-400mA 140V o4a lp ADV

advanced DALI non-SELV series

Product description

• Dimmable built-in constant current LED driver
• Dimming range 10 – 100 % (min. 25 mA)
• For luminaires of protection class I and protection class II
• Temperature protection as per EN 61347-2-13 C5e
• Adjustable output current between 250 and 400 mA via I-SELECT 2 plugs
• Max. output power 50 W
• Up to 91 % efficiency
• Power input on stand-by < 0.4 W
• Nominal lifetime up to 100,000 h
• 5 years guarantee

Housing properties

• Low profile metal casing with white cover
• Type of protection IP20

Interfaces

• one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION V2)
• Terminal blocks: 0° push terminals

Functions

• Adjustable output current in 1-mA-steps (I-SELECT 2)
• Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
• Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

• Application-oriented operating window for maximum compatibility

Typical applications

• For linear/area lighting
