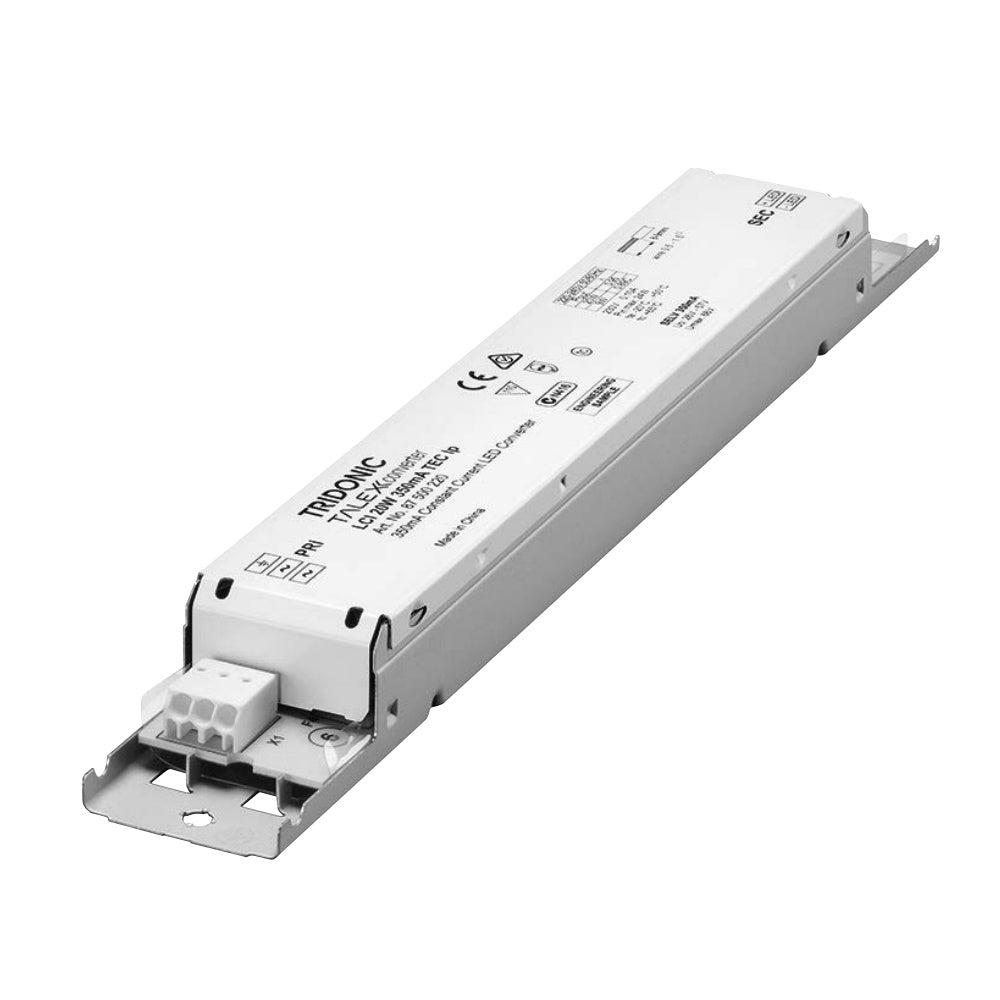

LCI 20W 500MA Tec LP 87500221

Product description • Fixed output built-in LED Driver • Constant current LED Driver • Output current  500 mA • Max. output power 20 W • Nominal life-time up to 50,000 h • For luminaires of protection class I and protection class II • Temperature protection as per EN 61347-2-13 C5e • 5-year guarantee Properties • Low-profile metal casing with white cover • Type of protection IP20 Functions • Overtemperature protection • Overload protection • Short-circuit protection • No-load protection Technical data Rated supply voltage 220 – 240 V AC voltage range 198 – 264 V Typ. rated current (at 230 V, 50 Hz, full load) 0.1 A Mains frequency 50 / 60 Hz Overvoltage protection 300 V AC, 1 h Leakage current (at 230 V, 50 Hz, full load) < 400 µA Max. input power 24 W Output power 20 W THD (at 230 V, 50 Hz, full load) < 20 % Output current tolerance3 ± 7.5 % Turn on time (at 230 V, 50 Hz, full load) ≤ 0.7 s Turn off time (at 230 V, 50 Hz, full load) ≤ 0.7 s Hold on time at power failure 0 s Ambient temperature ta -20 ... +50 °C Ambient temperature ta (at life-time 50,000 h) 40 °C Max. casing temperature tc 65 °C Storage temperature ts -40 ... +80 °C Dimensions L x W x H 230 x 30 x 21 mm È Standards, page 3 Wiring diagrams and installation examples, page 4 Driver LCI 20 W 350/500/700 mA TEC lp TEC series Ø4,1 4,1 30 230 220 21 side fixing feature 5 6 Ordering data Type Article number 87500221
