Wattage:
Voltage:
EAN:
Manufacturer:

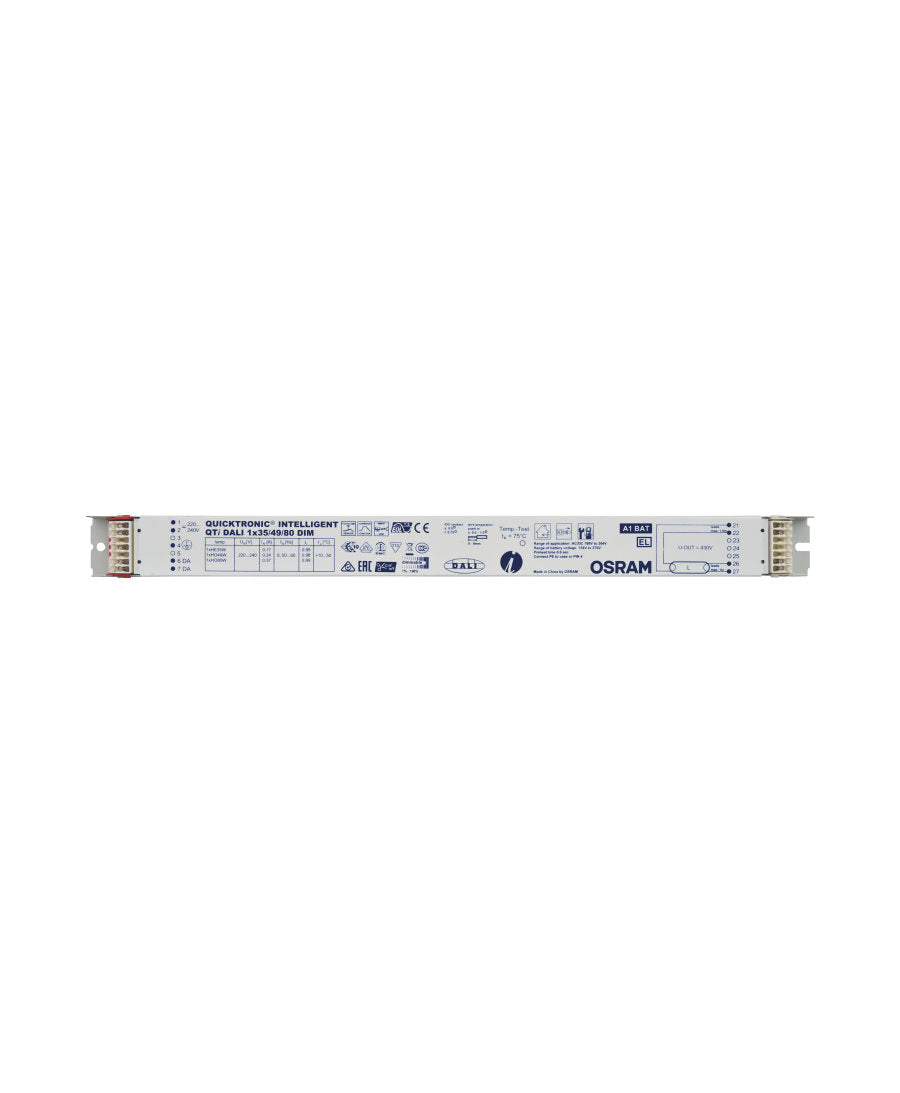

QTi Dali 1X35/49/80w Dim TL5 Ballast
4050300870342
Product family benefits
- System+ Guarantee available
- Easy integration in luminaire thanks to same dimensions like DALI GI ECG
- TouchDIM function for easy and inexpensive dimming of several ECGs
- Same luminous flux with direct and alternating current
- Dimming of amalgam lamps without flickering or reduced lifespan
- Automatic restart after lamp replacement
- Control via the DALI interface
- Compliance with the DALI Version-1 and IEC 60929
- Control input protected against overvoltage and polarity reversal (OSRAM ECG)
- Manual dimming without controller and with standard switches
- Including memory function (double click) and soft start
Areas of application
- Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
- Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
- Industry
- Open-plan offices, corridors and storage rooms
- Public buildings
- Sports halls and factories
- Strip lighting
- Shop lighting
- Suitable for luminaires of protection class I
References / Links
For more information on the system guarantee and the terms and conditions of the guarantee visit www.osram.com/system-guarantee
Technical Data
Electrical data
Input voltage AC
198…264 V
Nominal voltage
220…240 V
Mains frequency
50…60 Hz
Input voltage DC
154…276 V
Operating frequency
44…120 kHz
Max. ECG no. on circuit breaker 10 A (B)
12
Max. ECG no. on circuit breaker 16 A (B)
19
Inrush current
28 A
Light technical data
Starting time
0.6 s
Dimensions & weight
Length
360.0 mm
Width
30.0 mm
Height
21.0 mm
Mounting hole spacing, length
350.0 mm
Product weight
278.00 g
Cable cross-section, input side
0.5…1.5 / 0.5…1.0 mm²
Cable cross-section, output side
0.5…1.5 / 0.5…1.0 mm²
Temperatures & operating conditions
Ambient temperature range
+10…+50 °C
Permitted rel. humidity during operation
5…85 %
Lifespan
ECG lifetime
100000 h
Additional product data
Suitable for lamp power (1 lamp)
35…80 W
Capabilities
Dimming interface
DALI / Touch DIM / Touch DIM Sensor
Dimming range
1…100 %
Dimmable
Yes
Overheating protection
Power reduction and switch off at T > 75 °C at the tc point
Suitable for fixtures with prot. class
I
End of lamp life safety shutdown
EOL T.2
Max. cable length to lamp/LED module
1.0 m / 1.5 m
Certificates & standards
Approval marks – approval
VDE / VDE-EMC / EL / EAC / RCM / CCC
Standards
Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to IEC 62386-101:Ed1/Acc. to IEC 62386-102:Ed1
Protection class
I
EEI – Energy Label
A1 BAT
Type of protection
IP20
Logistical data
Commodity code
850410809000
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
Volume |
|---|---|---|---|---|---|
| 4050300870342 | UNV
|
1 | 360mm x 30mm x 21mm | 278.00g | 0.23dm³ |
| 4050300870359 | VS
|
20 | 392mm x 98mm x 165mm | 5779.99g | 6.34dm³ |
