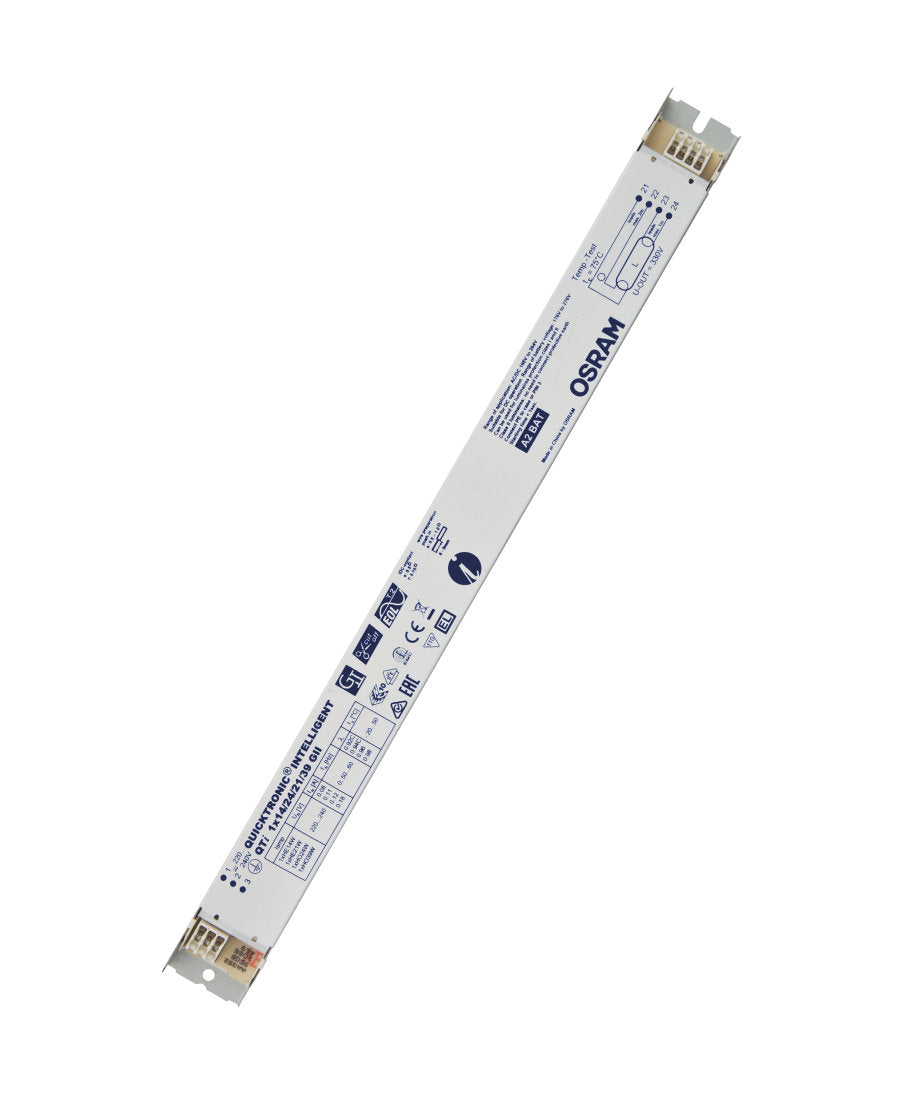

Osram QTI114 1x14/21/24/39w Ballast
Product family benefits
- Long lamp life
- No adverse effect from frequent on/off switching
- Automatic restart after lamp replacement
- Perfect lamp start for applications with motion sensors
- VDE/VDE EMC certified system
- Very high energy efficiency due to cut-off technology
Areas of application
- Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
- Industry
- Open-plan offices, corridors and storage rooms
- Public buildings
- Sports halls and factories
- Strip lighting
- Suitable for emergency lighting (DC operation)
- Modernization of existing systems
- Suitable for luminaires of protection classes I and II
Technical Data
Electrical data
Input voltage AC
198…264 V
Nominal voltage
220…240 V
Mains frequency
50…60 Hz
Input voltage DC
176…276 V
Operating frequency
42…85 kHz
Max. ECG no. on circuit breaker 10 A (B)
17
Max. ECG no. on circuit breaker 16 A (B)
28
Inrush current
24 A
Light technical data
Starting time
1.0 s
Dimensions & weight
Length
360.0 mm
Width
30.0 mm
Height
21.0 mm
Mounting hole spacing, length
350.0 mm
Product weight
210.25 g
Temperatures & operating conditions
Ambient temperature range
-20…+50 °C
Permitted rel. humidity during operation
5…85 %
Lifespan
ECG lifetime
100000 h
Additional product data
Suitable for lamp power (1 lamp)
14…39 W
Capabilities
End of lamp life safety shutdown
EOL T.2
Suitable for fixtures with prot. class
I / II
Dimmable
No
Max. cable length to lamp/LED module
2.0 m / 1.0 m
Certificates & standards
Approval marks – approval
VDE / VDE-EMC / ENEC 10 / CE
EEI – Energy Label
A2 BAT
Standards
Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547
Type of protection
IP20
Protection class
II
Logistical data
Commodity code
850410809000
