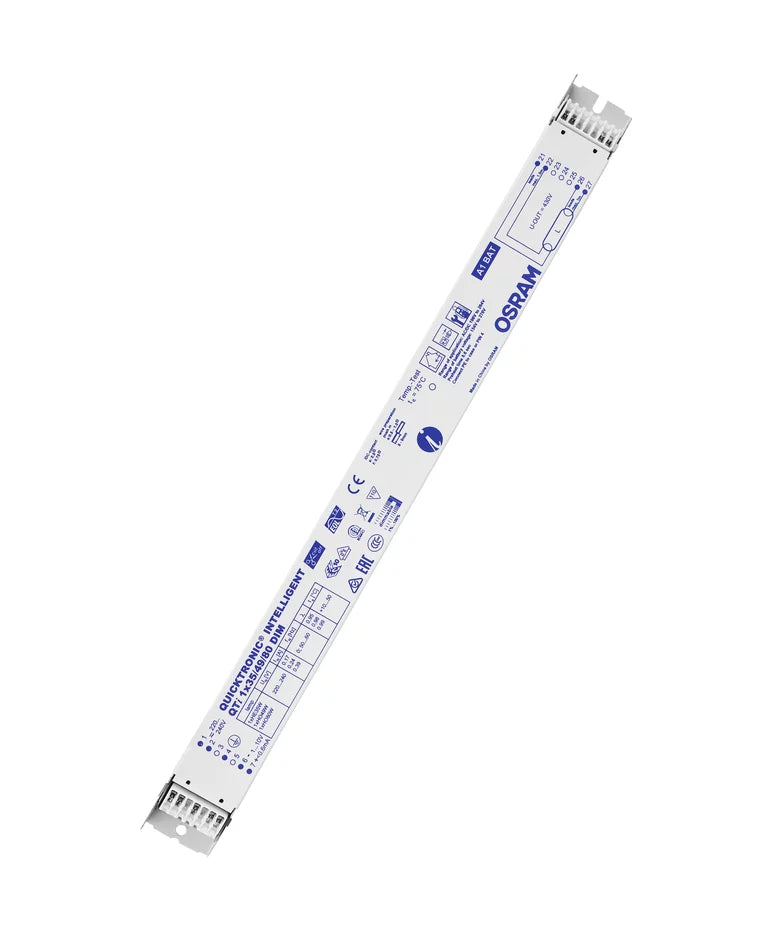

Osram QTi 1x35/49/80w Ballast Dimmable - Osram - QTI135DIM - 4050300870540
QUICKTRONIC INTELLIGENT DIM T5 Dimmable 1-10V. ECG for compact fluorescent lamps and T5 fluorescent lamps.
Nominal voltage 220 - 240 V
Mains frequency 50 Hz/60 Hz
DC voltage 154…276 V
Operating frequency 44…120 kHz
Starting time 0.6 s
Length 360 mm
Width 30 mm
Height 21 mm
Mounting hole spacing, length 350 mm
Wire preparation length, input side 8.0…9 mm
Wire preparation length, output side 8.0…9 mm
Ambient temperature range –10…+50 °C
Dimming interface 1…10 V
Dimming range 1…100%
Dimmable Yes
Suitable for fixtures with prot. class I
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC
EEI - Energy Label A1 BAT
Standards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to EN 61000 - 3-2/acc. to EN 61547
