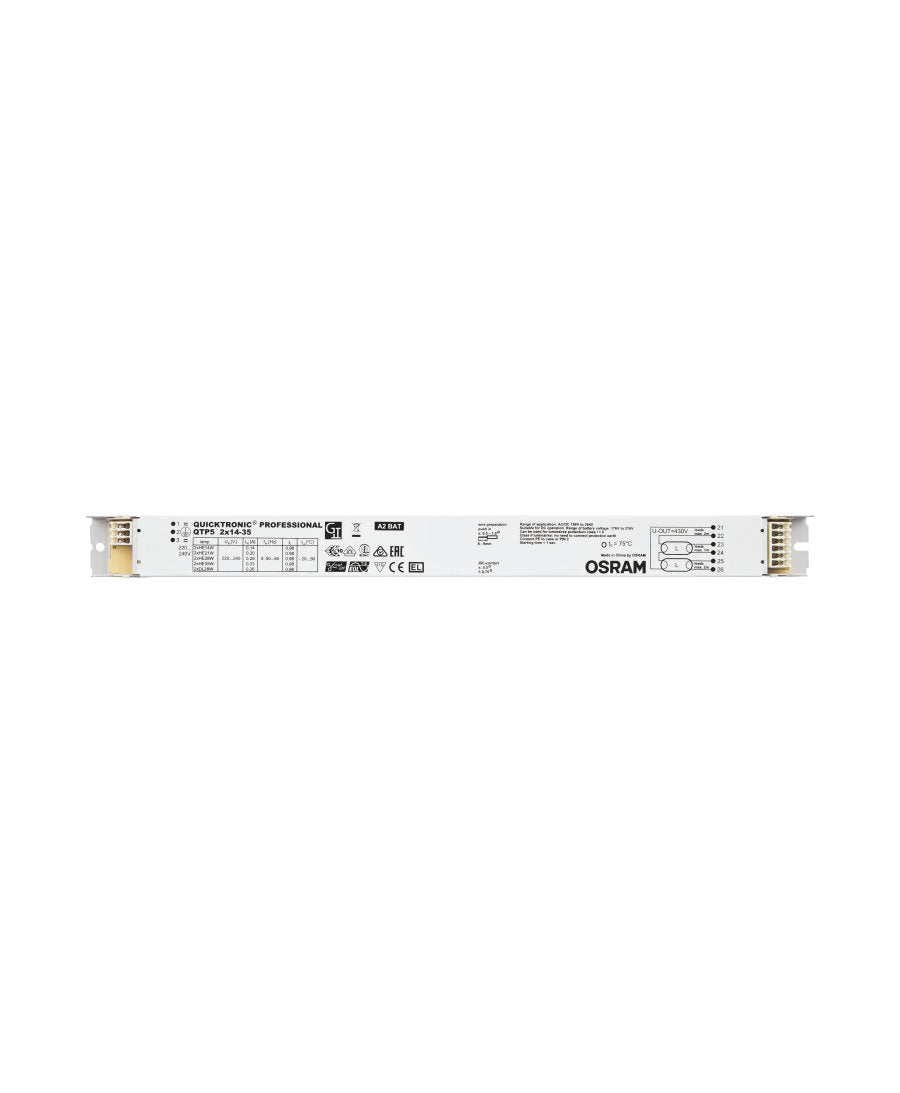

Osram QTP521435 - 2 x 14-35w T5 HF Ballast - 4008321329073
Product family benefits
- Long lamp life
- No adverse effect from frequent on/off switching
- Perfect lamp start for applications with motion sensors
- Automatic restart after lamp replacement
- VDE/VDE EMC certified system
- Very high energy efficiency due to cut-off technology
Areas of application
- Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
- Industry
- Open-plan offices, corridors and storage rooms
- Public buildings
- Sports halls and factories
- Strip lighting
- Suitable for emergency lighting (DC operation)
- Modernization of existing systems
- Suitable for luminaires of protection classes I and II
Technical Data
Electrical data
Input voltage AC
198…264 V
Nominal voltage
220…240 V
Mains frequency
50…60 Hz
Input voltage DC
176…276 V
Maximum output power
2 x 35 W
Efficiency in full-load
93 %
Operating frequency
40…50 kHz
Max. ECG no. on circuit breaker 10 A (B)
12
Max. ECG no. on circuit breaker 16 A (B)
19
Inrush current
24 A
Light technical data
Starting time
1.0 s
Dimensions & weight
Length
360.0 mm
Width
30.0 mm
Height
21.0 mm
Mounting hole spacing, length
350.0 mm
Product weight
234.00 g
Temperatures & operating conditions
Ambient temperature range
-20…+50 °C
Permitted rel. humidity during operation
5…85 %
Lifespan
ECG lifetime
100000 h
Additional product data
Suitable for lamp power (2 lamps)
14…35 W
Capabilities
End of lamp life safety shutdown
EOL T.2
Suitable for emergency lighting
Yes
Suitable for fixtures with prot. class
I / II
Max. cable length to lamp/LED module
2.0 m / 1.0 m
Dimmable
No
Intended for no-load operation
No
Certificates & standards
Approval marks – approval
VDE / VDE-EMC / CE / ENEC 10
EEI – Energy Label
A2 BAT
Standards
Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547
Protection class
III
Type of protection
IP20
Logistical data
Commodity code
85041080900
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration
19-05-2023
Primary Article Identifier
4008321329073
Candidate List Substance 1
Lead
CAS No. of substance 1
7439-92-1
Safe Use Instruction
The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database
bee6eb97-8ef3-4993-a1a8-c8e8e247acea
