Philips MASTER City White CDO-TT Plus 150W/828 E40

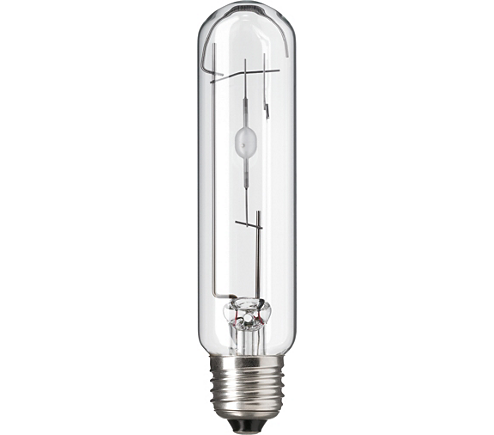

Generic Picture used,  the base will be 40MM  E40

Specifications

General information

Cap base	E40  [ E40]
Operating position	UNIVERSAL  [ Any/Universal]
Life to 5% failures (nom.)	18000 h
Life to 10% failures (nom.)	20000 h
Life to 20% failures (nom.)	22500 h
Life to 50% failures (nom.)	27000 h
LSF 2000 h Rated	99 %

LSF 4000 h Rated	99 %
LSF 6000 h Rated	99 %
LSF 8000 h Rated	99 %
LSF 12000 h Rated	99 %
LSF 16000 h Rated	97 %
LSF 20000 h Rated	90 %
	Sphere

Light technical

Colour Code	828  [ CCT of 2,800 K]
Luminous flux (nom.)	16400 lm
Luminous flux (rated) (nom.)	16400 lm
Colour designation	Warm white (WW)
Chromaticity coordinate X (nom.)	0.447
Chromaticity coordinate Y (nom.)	0.4
Correlated Colour Temperature (Nom)	2800 K
Luminous efficacy (rated) (nom.)	110 lm/W

Colour rendering index (nom.)	87
LLMF 2000 h Rated	95 %
LLMF 4000 h Rated	92 %
LLMF 6000 h Rated	90 %
LLMF 8000 h Rated	88 %
LLMF 12000 h Rated	85 %
LLMF 16000 h Rated	82 %
LLMF 20000 h Rated	80 %
Ratio scotopic/photopic lumens	1.30

Operating and electrical

Power (Rated) (Nom)	148.5 W
Lamp current run-up (max.)	3.0 A
Lamp current (EM) (nom.)	0.177 A
Ignition peak voltage (max.)	5000 V
Ignition supply voltage (min.)	198 V

Re-ignition time (min.) (max.)	900 s
Ignition time (max.)	30 s
Voltage (Max)	106 V
Voltage (Min)	90 V
Voltage (Nom)	99 V

Controls and dimming

Dimmable	Yes
Run-up time 90% (max.)	3 min

Mechanical and housing

Lamp Finish	Clear
Bulb shape	T46  [ T 46mm]

Approval and application

Energy Efficiency Class	F
Mercury (Hg) content (max.)	15.8 mg
Mercury (Hg) content (nom.)	15.8 mg

Energy consumption kWh/1,000 hours	149 kWh
	473327

UV

PET (NIOSH) (min.)

8 h/500lx

Luminaire design requirements

Bulb temperature (max.)	450 °C
Cap-base temperature (max.)	250 °C

Cap-Base Temperature (Max)-DUP(do not use)

482 °F

Product data

Full product code	871829112034600
Order product name	MASTER CityWhite CDO-TT Plus 150W/828 E40
EAN/UPC – product	8718291120346
Order code	12034600
Local order code	150CDOTTPLUS828
SAP numerator – quantity per pack	1

Local code description	MASTER CITYWH CDO-TT PLUS 150W/828 E40
Numerator – packs per outer box	12
SAP material	928082219231
Net Weight (Piece)	0.135 kg
ILCOS code	MT/UB-150/828-H-E40-48/211
